Vacuum Forming Machine
Home page > Product > Vacuum Forming Machine > Fully automatic male mold vacuum forming machine
Click to see the full breakdown
×
Popular products

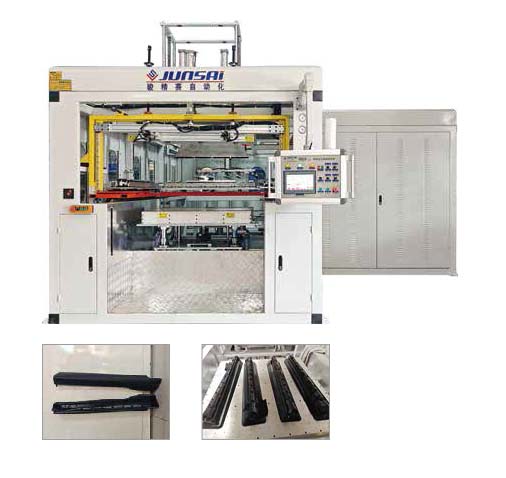

Fully automatic male mold vacuum forming machine

  • Fully automatic male mold vacuum forming machine

Fully automatic male mold vacuum forming machine
Fully automatic male mold vacuum forming machine
Category：
Vacuum Forming Machine
0086-17321142990
[email protected]
Inquiry Related
Detail Video

Equipment Features

  • 仅需人工取放注塑件及成品，其余工序均由设备自动完成。
  • 片料压框系统范围可根据实际所需尺寸调节，自由变换生产尺寸。
  • 上料机械手采用导向轴实现上下升降，齿轨设计保证升降和运行的快速和平稳。
  • 防垂设置可调，自动设备防垂光电感应高度，避免对皮料的损坏。
  • 吸覆装置的宽边可实现尺寸快速更换及可调节。

TechnologicalProcess

人工放置注塑件材料，按下启动按钮 → 机械手自动上下取料(自动循环) → 加热炉自动推动 → 模具平台自动上升 → 自动真空吸附 → 模具平台自动下降推出人工取走成品

Application

本设备用于汽车内饰件如汽车门板、的表皮吸覆，将皮料与PP、ABS、PC类塑料件吸覆一体，成品外观表皮纹理清晰，表皮无破损、褶皱，满足撕剥力要求。

Technical Parameters

序号技术参数
1成型长度 Molding Length1050-1350mm
2成型宽度 Molding Width1000*1200mm
3成品摆放个数 Product Placement Number≥1套
4气压 Air Pressure0.5-0.6Mpa
5真空泵 Vacuum Pump200m³/h
6操机人数 Operator Number1人
7热炉功率 Furnace Power132kw
8设备外形尺寸 Machine Dimension(L*W*H)6080*5100*3740mm



Qualification
C83356-CE certificate

C83356-CE certificate

Contract-abiding and trustworthy enterprise

Contract-abiding and trustworthy enterprise

Enterprise credit rating certificate

Enterprise credit rating certificate

Trademark certificate

Trademark certificate

CE certification

CE certification

EU DECLARATION

EU DECLARATION

CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE

CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE

CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE

CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE

General certificate

General certificate

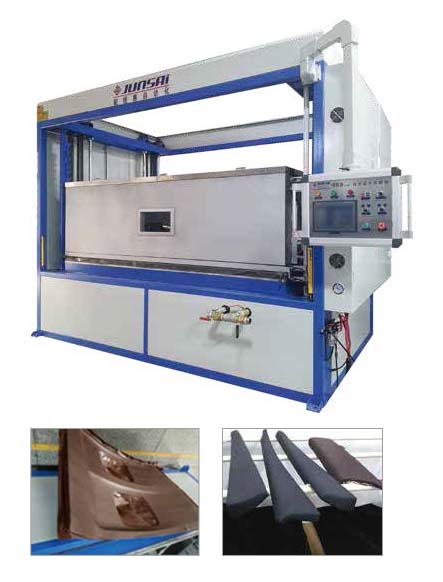

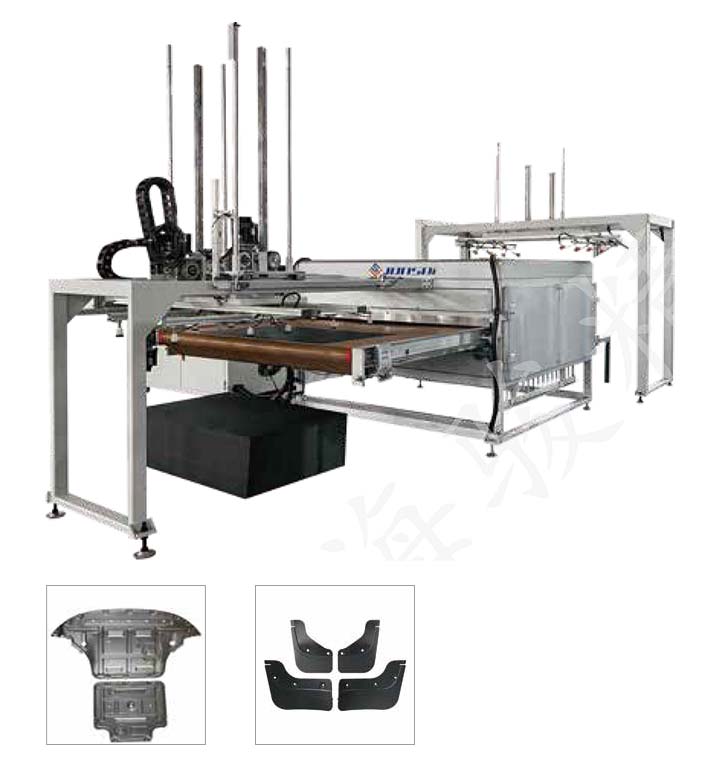

Previous： Vacuum activating machine for aviation interior parts Next： Semi-automatic oven-type vacuum forming machine
