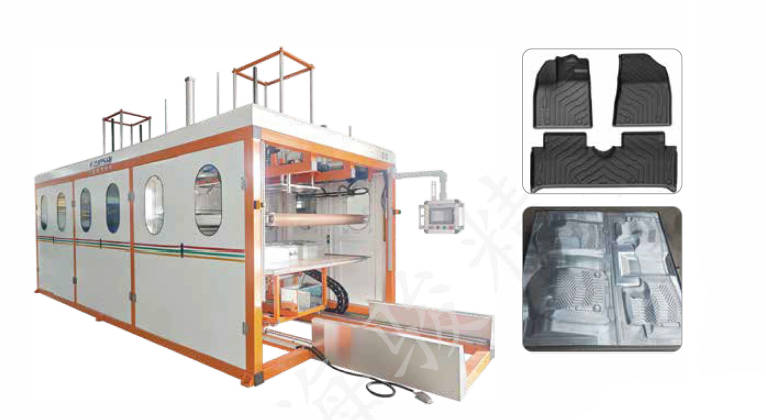

Special Vacuum Forming Machine for Car Floor Mats

Equipment Features

• The entire machine is equipped with a safety protective cover, effectively eliminating safety hazards throughout all production steps.
• The high-speed mold changing system can accommodate hundreds of thermoforming molds, enabling rapid mold changes to switch production products and achieve multi-purpose use of one machine.
• The internal circulation heating system is equipped with intelligent temperature control, enabling the material to soften rapidly1, saving energy and electricity.
• A large-flow vacuum pump enables molding in 3 seconds, with uniform thickness of finished products and a low defect rate.

Application

• This equipment is specially designed for automotive floor mats and is suitable for thermoforming TPE/TPO and other front-row, rear-row, and trunk mats.

Technological Process

• The full sheet material is loaded by forklift to the material storage area → the manipulator takes the material to the set position → the heating platform rotates itself to send the material into the oven → when the set heating time is reached, the heating platform moves horizontally to above the mold, and simultaneously rotates backward to lay the heated material flat onto the mold → vacuum thermoforming starts, and the lifting cooling spray system starts according to the set time → when the product forming time is reached, the operator manually removes the product and waits for the next mold, repeating the cycle

Technical Parameters
