Vacuum Forming Machine
Home page > Product > Vacuum Forming Machine > Tidal Seedbed Thick Piece Vacuum Forming Machine
Click to see the full breakdown
×
Popular products

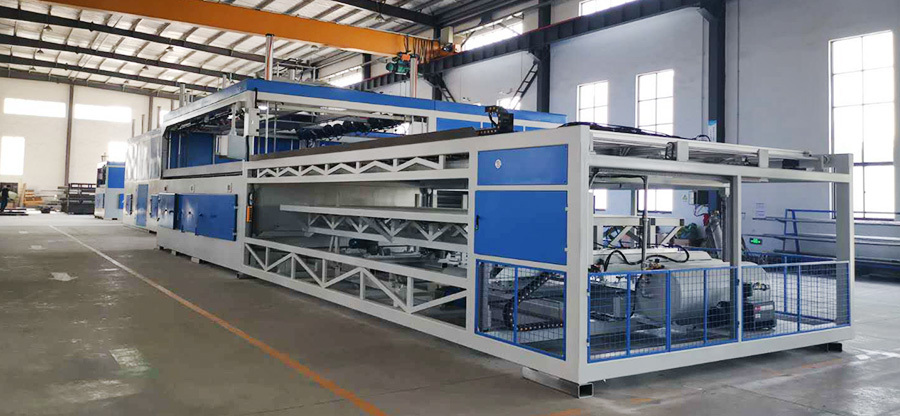

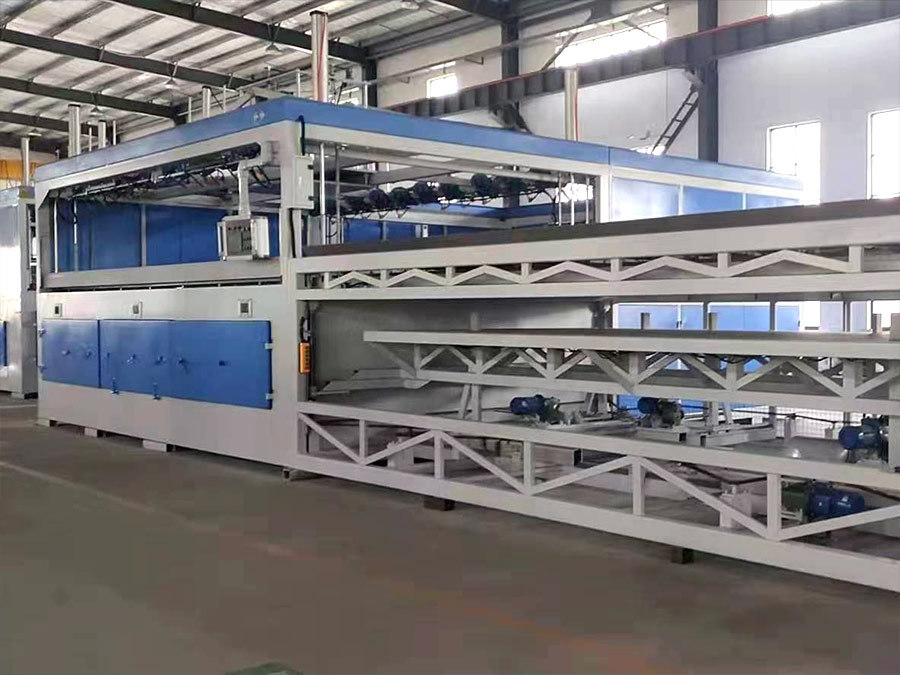

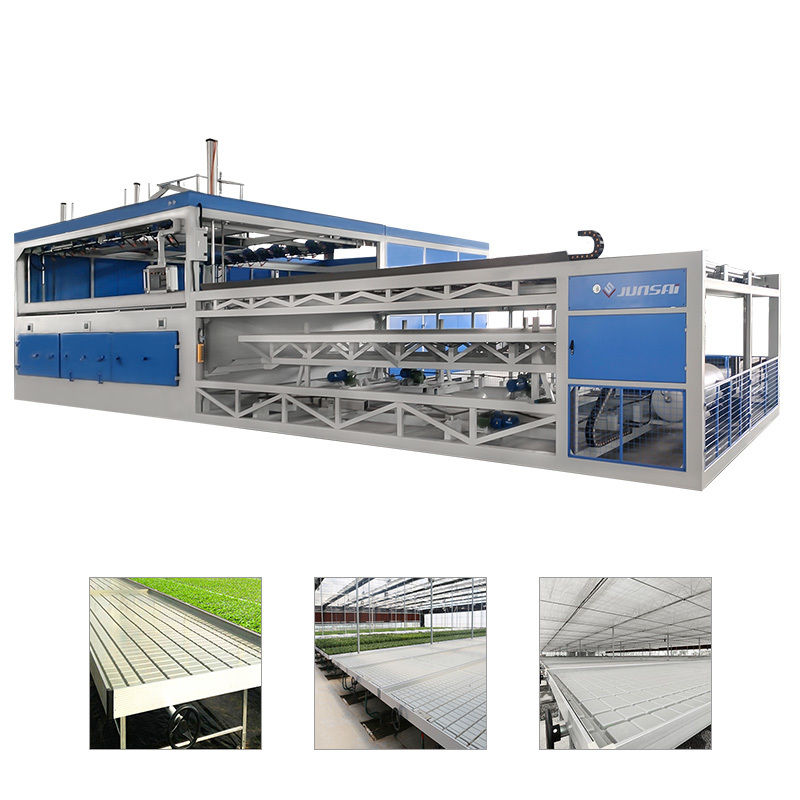

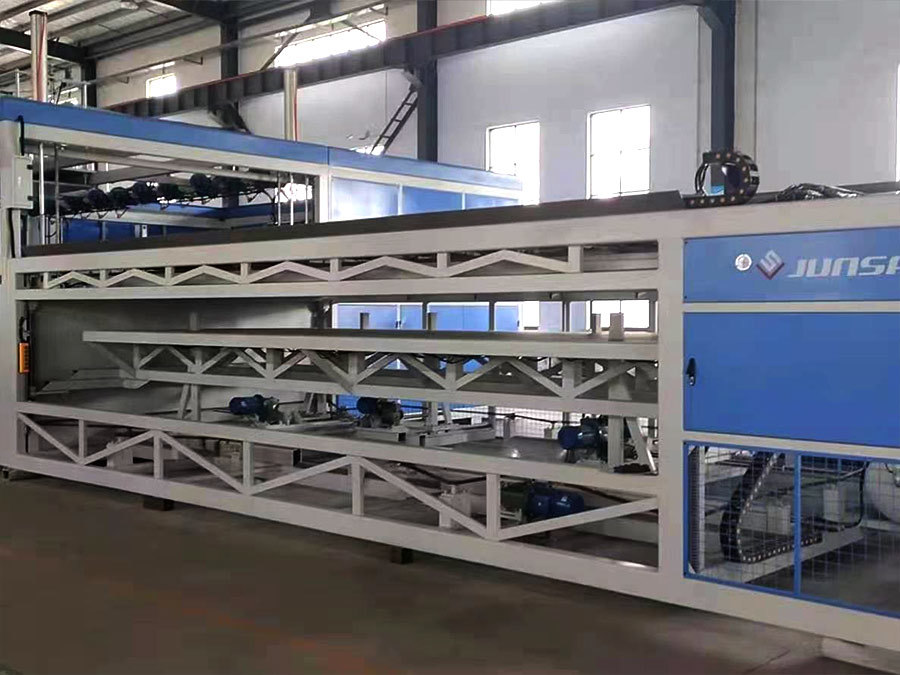

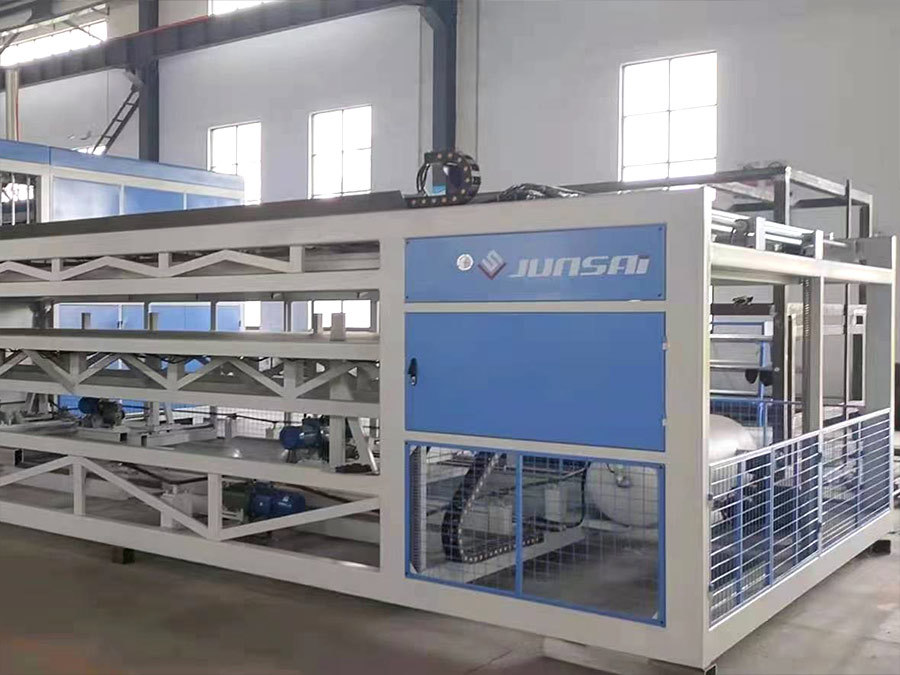

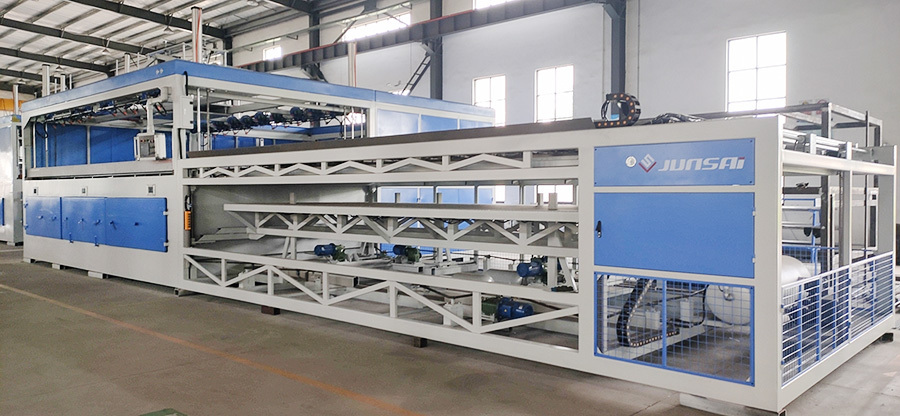

Tidal Seedbed Thick Piece Vacuum Forming Machine

  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine

Tidal Seedbed Thick Piece Vacuum Forming Machine
Tidal Seedbed Thick Piece Vacuum Forming Machine
Keywords：
1 machine
1 Vacuum forming equipment
Category：
Vacuum Forming Machine
0086-17321142990
[email protected]
Inquiry Related
Detail Video

Further Observation

Equipment Features

  • Manual discharge or automatic loading and unloading on a mechanical platform.
  • The size of the blister wellhead is lengthened and widened, which is suitable for the production of large seedbeds.
  • The punch state can realize the function of pre-blowing (bubble blowing), which reduces the stretching of the material by the mold.
  • Sealed blowback, manual/automatic bubble blowing is optional.


Application

  • The equipment is suitable for large-size, high-precision tidal seedbed blister.
  • Common thermoplastic materials such as ABS, HDPE, PE, PC, PS, PVC, PMMA, EVA, PP, etc. can be used.

Technical Parameters

Serial numberTechnical parameters
1Molding Length6600mm ( Customizable )
2Molding Width3100mm ( Customizable )
3Forming Height500mm ( Customizable )
4Adaptive Material Thickness1-10mm
5Heating ElementHalogen tube/carbon fiber medium wave tube
6Furnace Power940KW
7Power CapacityThree-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10%
8Machine Dimension(L*W*H)16000*7800*4100mm
9Machine Weight18T(Approximately weight)

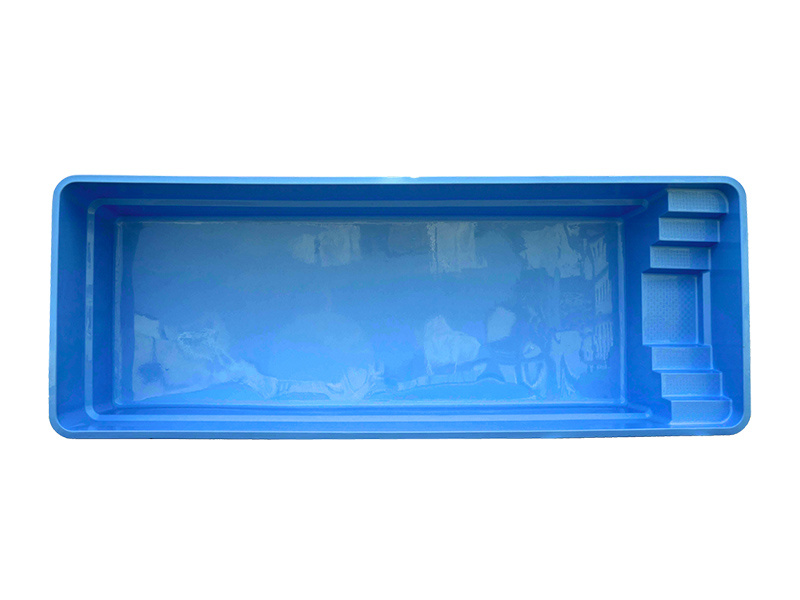

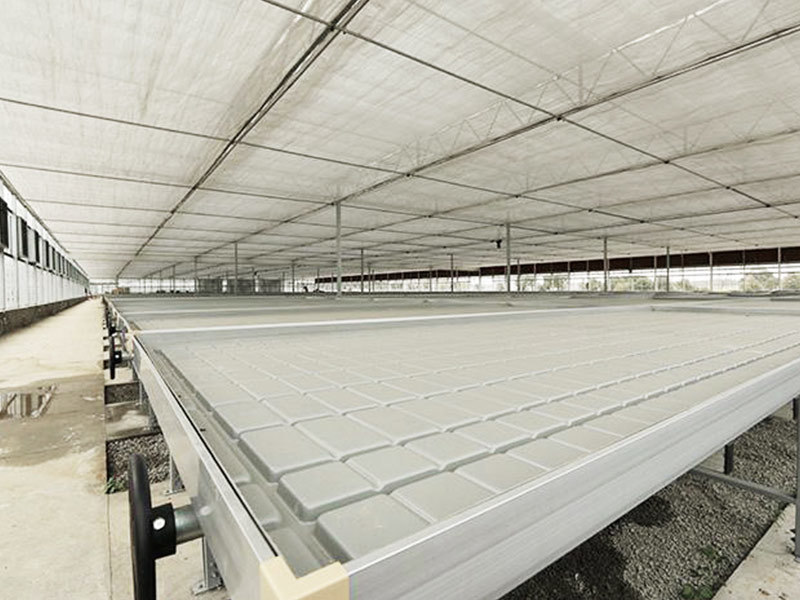

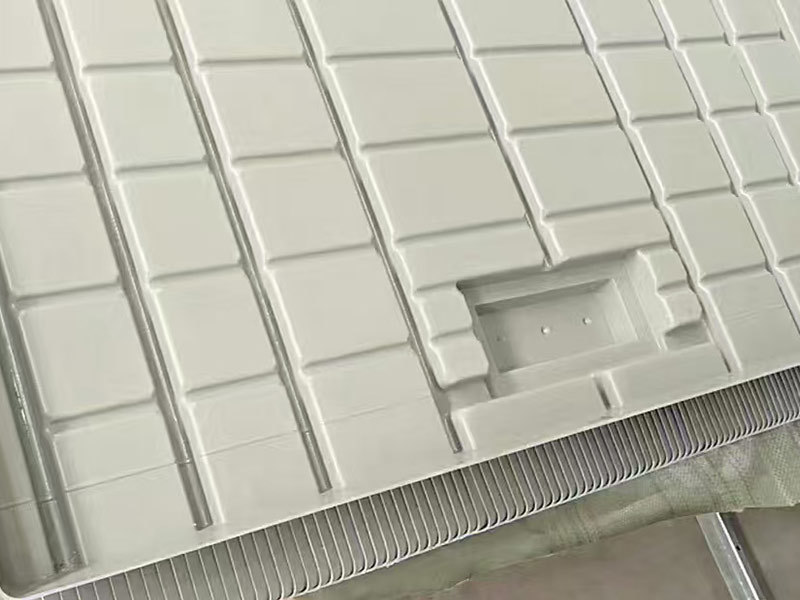

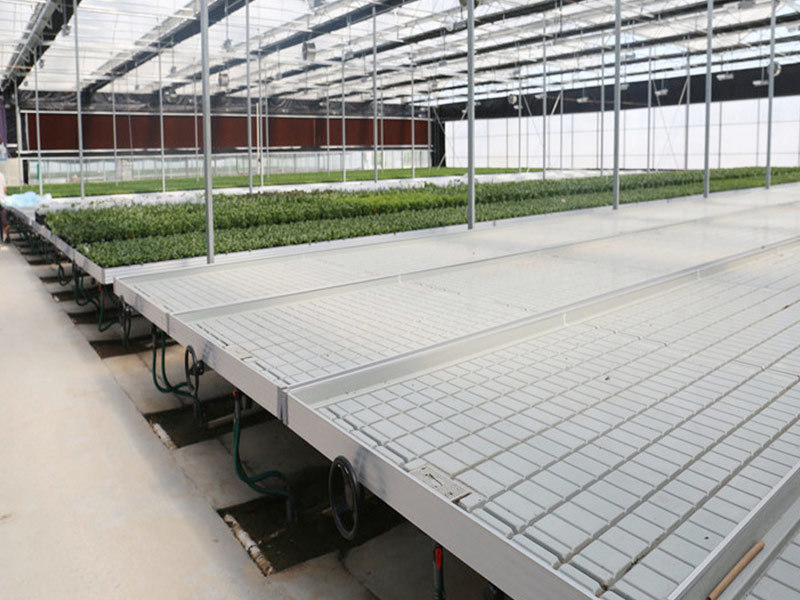

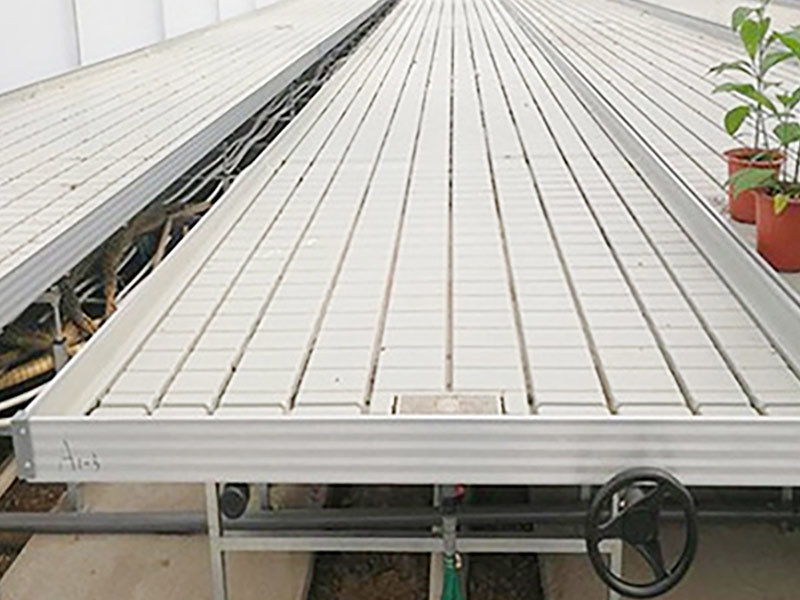

Real shot sample
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
  • Tidal Seedbed Thick Piece Vacuum Forming Machine
