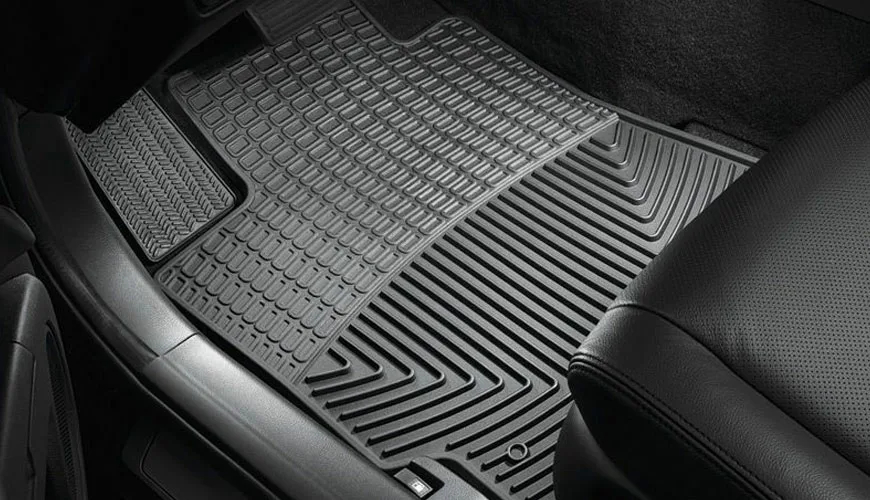

Automotive floor mats can be manufactured using thermoforming equipment that heats a thermoplastic sheet until it becomes flexible, forms it into a mold, cools it, and trims it to the required shape. The process can produce molded car floor mats with raised edges, surface textures, drainage channels, and contours designed to fit specific vehicle floor areas.
The manufacturing method depends on the selected material, mat thickness, surface design, required flexibility, and production volume. Common material options include thermoplastic elastomers (TPE), thermoplastic polyolefins (TPO), and selected thermoplastic sheets or multilayer constructions. For manufacturers, choosing the right thermoforming machine involves evaluating heating uniformity, mold design, forming depth, cooling performance, trimming accuracy, and compatibility with the intended material.
Thermoforming is a plastic manufacturing process in which a thermoplastic sheet is heated until it softens, shaped against or into a mold, and cooled to retain the required geometry. The formed part is then released from the mold and trimmed or finished as needed.
In automotive floor mat production, thermoforming can be used to create molded mats with three-dimensional contours, raised perimeter edges, textured surfaces, and channels that help contain water, mud, and other debris. Depending on the vehicle application, the finished mat may be designed for the driver footwell, passenger area, rear seating area, or cargo compartment.
Thermoforming is different from manufacturing a conventional carpet mat by cutting and sewing textile layers. It is also different from injection molding, which forces molten plastic into a closed mold. Thermoforming starts with a prepared sheet and uses heat, pressure, vacuum, or mechanical assistance to shape the material.
Not every automotive floor mat is thermoformed. Some are produced through injection molding, compression molding, textile fabrication, or combinations of these methods. The best process depends on the mat's material, structure, surface design, and performance requirements.
Automotive floor mats must accommodate the contours of the vehicle floor while remaining practical for everyday use. Depending on their design, they may need to resist water, dirt, abrasion, temperature changes, and repeated foot contact.
Thermoforming equipment provides a way to shape suitable thermoplastic sheets into floor coverings with defined contours and functional surface features.
A car floor is rarely a completely flat surface. The driver footwell may include raised sections, pedal clearances, transmission tunnel contours, seat mounting areas, and other geometric features.
A custom-designed mold allows a thermoformed mat to follow selected floor contours. This can improve coverage and help the mat remain positioned correctly when its dimensions, edge design, and retention features are properly engineered.
For manufacturers serving different vehicle models, mold design and changeover procedures affect how efficiently they can produce multiple mat shapes.
Many molded car floor mats feature raised edges intended to contain water, mud, sand, and loose debris. Surface channels or grooves can help direct liquids toward designated collection areas.
Thermoforming can create these features when the sheet material, mold geometry, and forming depth are suitable. Deep channels and tall perimeter walls require careful control of material stretching to prevent excessive thinning in specific areas.
Floor mats may use patterned surfaces to improve appearance, provide grip, or help manage dirt. Depending on the process, mold texture can be transferred to the softened plastic sheet.
Manufacturers should evaluate the relationship between mold texture, material flexibility, cleaning requirements, and resistance to wear. A surface pattern that looks attractive on a sample may need further testing to confirm that it performs well under repeated use.
Thermoforming can support selected low-to-medium-volume applications, product development programs, and production runs involving different mat sizes or designs.
The economics depend on the machine configuration, mold cost, trimming requirements, material yield, and production volume. For some high-volume floor mat designs, injection molding may offer a better overall solution, particularly when the part requires complex integrated features.
Material selection influences the flexibility, weight, surface finish, durability, and forming behavior of a car floor mat. The appropriate material depends on the intended vehicle application and the performance requirements established by the manufacturer.
| Material | General characteristics | Potential applications |
|---|---|---|
| Thermoplastic elastomer (TPE) | Flexible, available in different hardness levels, and suitable for many molded automotive products | Molded floor mats and all-weather floor coverings |
| Thermoplastic polyolefin (TPO) | Polyolefin-based material with properties that vary by formulation | Selected molded interior components and floor coverings |
| Thermoplastic polyurethane (TPU) | Available in formulations offering flexibility and abrasion resistance | Specialized flexible molded products where cost and material properties are suitable |
| Polypropylene (PP) | Lightweight thermoplastic with good chemical resistance | Selected rigid or semi-rigid automotive components and mat structures |
| Multilayer thermoplastic sheet | Combines layers with different surface or functional properties | Floor coverings requiring a specific decorative or functional surface |
These materials are not interchangeable. Their forming temperature ranges, stretching behavior, stiffness, surface characteristics, and resistance to wear differ according to formulation and sheet construction.
TPE is commonly associated with flexible molded automotive mats, but a specific TPE floor mat may be manufactured by injection molding rather than sheet thermoforming. Before selecting equipment, manufacturers should confirm that the intended material is available in a suitable sheet format and can achieve the required finished-part performance through thermoforming.
For products sold as vehicle-specific replacement accessories, fit, retention, pedal clearance, and compatibility with the original floor covering should also be evaluated.
A typical sheet thermoforming production process consists of material preparation, heating, forming, cooling, demolding, trimming, and quality inspection. The exact sequence varies with the machine design, material, mold, and production requirements.
The process starts with a thermoplastic sheet that meets the required material, thickness, color, and surface specifications.
Sheet thickness affects heating time, forming behavior, finished weight, and the distribution of material across the molded part. Variations in sheet thickness can lead to inconsistent wall thickness or dimensional differences after forming.
For decorative or multilayer sheets, manufacturers should confirm that the surface layer can withstand the forming temperature and stretching without cracking, discoloration, or separation.
The sheet format must also be compatible with the machine's clamping area and mold layout.
The sheet enters the heating station, where infrared heaters or another suitable heating system soften the thermoplastic material.
The material must reach an appropriate forming temperature across the required area. If some sections are too cold, they may not reproduce the mold contours adequately. If other sections are overheated, the sheet may become excessively thin, sag, discolor, or degrade.
Zoned heating systems allow operators to adjust heat distribution according to the mat's geometry. Areas that must stretch more deeply may require a different heating profile from flatter sections.
The correct settings depend on the specific material, sheet thickness, heater arrangement, and forming cycle. Manufacturers should establish them through material data and production trials rather than use one temperature setting for every sheet.
After heating, the softened sheet is positioned over or against the mold. The machine then forms the material using the selected process.
Vacuum forming is one option. A vacuum removes air between the softened sheet and mold, allowing the pressure difference to draw the material against the mold surface.
Pressure forming uses additional compressed air to help press the sheet against the mold. Depending on the tooling and equipment, this can improve the reproduction of certain surface details.
Some applications may use mechanical assistance to guide material into deeper sections of the mold.
For car floor mats with deep footwell contours, raised perimeter walls, or pronounced channels, the forming sequence must be designed to distribute the material without excessive thinning.
The mold defines the floor mat's shape, including its outline, surface pattern, drainage channels, and raised edges.
The mold must be designed with suitable draft angles, release characteristics, and allowances for material behavior during cooling. Sharp transitions and deep recesses require particular attention because the sheet stretches as it conforms to the mold.
If the mat is designed for a specific vehicle model, the mold should be developed from verified dimensions or appropriate three-dimensional design data. Physical fit checks are necessary before approving the production tool.
Once the material has taken the required shape, it must cool sufficiently to retain its geometry.
Cooling may involve mold cooling circuits, controlled airflow, or other methods appropriate to the machine and material. Uneven cooling can cause warpage or dimensional variation, especially in larger mats or sections with different thicknesses.
The cooling stage should balance cycle time with shape stability. Removing the mat too early can cause it to distort during handling or after demolding.
After sufficient cooling, the formed sheet is released from the mold.
Demolding depends on the mold geometry, material flexibility, draft angles, and any undercuts or retaining features. Poor release conditions can stretch the mat, damage the surface, or affect its final dimensions.
Depending on production volume and equipment design, removal may be performed manually or with an automated handling system.
The forming process often leaves excess material around the perimeter. Trimming removes this material and establishes the finished outline.
Manufacturers may use cutting fixtures, CNC routers, dedicated trimming tools, or other suitable systems. The choice depends on the required accuracy, mat geometry, production volume, and material properties.
For vehicle-specific car floor mats, the final outline must provide adequate coverage without interfering with pedals, seat rails, or other interior components. Any retention holes or attachment features must also be positioned accurately.
The finished mat should be checked against the approved product specification.
Inspection may include:
A sample fit test should confirm that the mat sits correctly in the intended vehicle or representative floor fixture. For driver-side mats, pedal clearance and retention performance deserve particular attention.
Once approved, the mats can be cleaned, labeled, and packaged according to the manufacturer's handling and shipping requirements.
Both vacuum forming and pressure forming can shape thermoplastic sheets, but their capabilities differ according to the material, mold, and machine configuration.
| Comparison factor | Vacuum forming | Pressure forming |
|---|---|---|
| Forming method | Uses vacuum to draw the sheet against the mold | Uses vacuum and additional air pressure, depending on the machine design |
| Surface reproduction | Suitable for many general contours and textures | Can improve detail reproduction in suitable applications |
| Equipment requirements | Heating system, vacuum system, mold, and cooling arrangement | Pressure-capable equipment, suitable mold, and controlled heating |
| Mold design | Must support air evacuation and material release | Must also accommodate pressure loads and the required surface detail |
| Potential floor mat applications | Selected liners, covers, and molded sheet-based floor coverings | Selected mats requiring more detailed surface features or specific contours |
| Main considerations | Material distribution, draw depth, surface contact, and cooling | The same factors, plus pressure control and tooling requirements |
Neither method is automatically preferable for all car floor mats. The choice should be based on the required surface finish, draw depth, material thickness, cycle time, tooling cost, and production target.
It is also worth confirming whether the intended product is genuinely suited to sheet thermoforming. Many all-weather automotive floor mats are produced through injection molding or other processes, particularly when the design includes complex three-dimensional features or integrated structural details.
Selecting the right equipment starts with the finished product requirements rather than the machine's maximum advertised capacity.
The machine must accommodate the full floor mat, including clamping margins and the space required for the mold. Buyers should check the effective forming area, mold mounting dimensions, opening height, and forming stroke.
If the product range includes mats for different vehicle types, evaluate whether one machine can accommodate the largest part and support practical mold changes for smaller products.
Heating uniformity affects the way the sheet stretches and reproduces the mold. Review the heater layout, zoning controls, temperature monitoring, and repeatability of process settings.
For complex floor mat designs, request a forming trial using the intended material and sheet thickness.
The forming system must be suitable for the part geometry and surface requirements.
For vacuum forming, evaluate vacuum capacity, evacuation time, mold connections, and sealing. For pressure forming, confirm the operating pressure range, pressure controls, mold compatibility, and relevant safety provisions.
The machine should be evaluated under realistic operating conditions, not only by a single maximum-pressure or vacuum specification.
Cycle time depends on heating, forming, cooling, demolding, trimming, and material handling. A machine with fast forming capability may still have limited output if cooling or trimming becomes the production bottleneck.
Ask the supplier to estimate finished-part output using the actual material, mold, and process sequence. Include changeovers, inspection, maintenance, and expected scrap when calculating production capacity.
The trimming system should deliver the accuracy required by the finished floor mat. If the product has complex contours, a dedicated fixture or CNC trimming system may improve repeatability.
Automation options include sheet loading, part removal, material transfer, and integrated inspection. The appropriate level depends on labor costs, production volume, product variety, and investment budget.
Mold design influences surface quality, material distribution, cooling, and release. The mold should be developed around the actual sheet material and intended forming process.
For manufacturers producing multiple car floor mat designs, review mold-change time, storage of process settings, fixture compatibility, and the availability of replacement tooling.
The equipment supplier should explain how the machine supports process repeatability, maintenance, troubleshooting, and operator training.
Manufacturers should also establish inspection criteria for material thickness, contour accuracy, surface appearance, and finished-part fit. For automotive applications, customer requirements may include additional tests for heat resistance, odor, emissions, flammability, or wear.
Defects usually arise from the interaction between material properties, heating, mold geometry, forming conditions, and cooling.
| Defect | Possible causes | Recommended measures |
|---|---|---|
| Uneven thickness | Uneven heating or excessive stretching | Adjust heating zones and review material distribution |
| Wrinkles or folds | Poor sheet positioning or excessive material accumulation | Review clamping, sheet placement, and forming sequence |
| Incomplete surface details | Insufficient mold contact or unsuitable forming conditions | Check vacuum or pressure, mold venting, and sheet temperature |
| Warpage | Uneven cooling or premature demolding | Improve cooling uniformity and verify demolding conditions |
| Surface discoloration | Excessive heating or material degradation | Adjust heating settings and follow material processing limits |
| Inaccurate outline | Trimming errors or unstable part positioning | Improve trimming fixtures and cutting-tool maintenance |
| Cracking or surface damage | Material incompatibility, excessive stretching, or unsuitable temperature | Verify sheet suitability and review the forming profile |
| Poor vehicle fit | Incorrect mold dimensions or inconsistent trimming | Validate design data and perform fit checks against the intended vehicle |
A practical troubleshooting process begins with measurements. Recording material thickness, sheet temperature, heating time, vacuum or pressure settings, cooling time, and finished-part dimensions helps identify the source of variation.
Thermoforming and injection molding are both used to manufacture plastic components, but they suit different product designs and production requirements.
| Factor | Thermoforming | Injection molding |
|---|---|---|
| Starting material | Thermoplastic sheet | Plastic pellets or granules |
| Forming method | Heated sheet is shaped using a mold, vacuum, pressure, or mechanical assistance | Molten plastic is injected into a mold cavity |
| Part geometry | Often suited to sheet-based parts with broad surfaces and selected contours | Can produce complex three-dimensional features and integrated details |
| Secondary operations | Trimming is commonly required | Trimming may be limited, although finishing can still be necessary |
| Tooling considerations | Forming mold plus trimming equipment as required | Injection mold with a suitable gating, cooling, and ejection system |
| Production economics | May suit selected lower-volume or large sheet-based products | Often attractive for high-volume production and complex molded features |
| Design flexibility | Depends on sheet format, mold design, and forming limits | Depends on mold complexity, material behavior, and part geometry |
For a large, relatively shallow floor covering, thermoforming may be worth evaluating if a suitable sheet material can meet the product's performance requirements. For a floor mat with complex contours, integrated clips, deep channels, or demanding three-dimensional features, injection molding may be more appropriate.
A fair cost comparison should include material usage, tooling, trimming, cycle time, labor, scrap, quality inspection, and expected production volume.
Automotive floor mats must fit the intended vehicle and remain appropriately positioned during use. Their design should account for the shape of the floor, the original floor covering, retention systems, and clearance around the pedals.
For driver-side mats, manufacturers should verify that the mat cannot interfere with accelerator or brake pedal movement under the intended installation conditions. Correct dimensions, suitable retention features, and clear installation instructions help reduce fitment problems.
Material performance also needs to match the intended use. Depending on the product and market, testing may cover abrasion, flexibility, temperature exposure, cleaning chemicals, flammability, odor, emissions, and dimensional stability.
Manufacturers should use the applicable vehicle manufacturer specifications and relevant market requirements when establishing the product validation plan. A visually acceptable sample alone does not demonstrate that a floor mat meets every durability or safety requirement.
Production efficiency depends on the complete manufacturing process rather than the forming machine alone.
Consistent sheet quality helps reduce variation before forming begins. Manufacturers should monitor sheet thickness, material condition, and storage requirements, especially when processing materials sensitive to temperature or environmental conditions.
Heating profiles should be established for each approved material and mold. Operators should avoid applying the same settings to different sheet thicknesses or geometries without validation.
Mold maintenance also affects production performance. Clean mold surfaces, functioning vacuum passages, suitable cooling arrangements, and consistent release conditions help reduce defects and unplanned downtime.
Trimming operations should be balanced with the forming cycle. If trimming is slower than forming, adding capacity or improving part handling may deliver greater throughput gains than increasing machine speed.
Finally, manufacturers should track material yield, scrap causes, cycle time, and inspection results. These records make it easier to identify recurring problems and compare the cost of different floor mat designs.
A thermoplastic sheet is heated until it softens, formed against a mold using vacuum or pressure, cooled, removed from the mold, and trimmed to its final dimensions. The finished mat is then inspected for contour accuracy, surface quality, thickness, and fit.
Potential materials include TPE, TPO, selected TPU formulations, polypropylene, and multilayer thermoplastic sheets. The appropriate choice depends on sheet availability, flexibility, wear resistance, surface requirements, forming behavior, and the intended vehicle application.
Vacuum forming can be suitable for floor mats made from compatible thermoplastic sheets when the required geometry and performance can be achieved. Deep contours, tall edges, or detailed features may require careful mold design, optimized heating, mechanical assistance, or another forming method.
Thermoformed mats are made by heating and shaping a plastic sheet, with trimming commonly required afterward. Injection-molded mats are produced by injecting molten plastic into a mold. Thermoforming may suit selected sheet-based designs, while injection molding can accommodate more complex integrated features.
Yes. A suitable mold can form raised perimeter edges, grooves, and selected channels in compatible thermoplastic sheets. The design must account for material stretching and thickness distribution, especially where the edges are high or the channels are deep.
There is no single thickness suitable for every mat. The required starting thickness depends on the material, finished-part thickness distribution, forming depth, flexibility, wear requirements, and mold geometry. Manufacturers should establish the appropriate thickness through design evaluation and forming trials.
Uneven thickness can result from nonuniform heating, excessive stretching, poor material distribution, or unsuitable mold geometry. Manufacturers can investigate heater settings, sheet positioning, forming conditions, and the use of plug assists where appropriate.
They should develop molds from verified vehicle dimensions or suitable three-dimensional design data, maintain consistent forming conditions, control trimming accuracy, and conduct fit checks. Driver-side mats should also be checked for proper retention and pedal clearance.
The price depends on forming area, heating system, vacuum or pressure capability, automation, mold design, trimming equipment, and production capacity. Buyers should request quotations based on the actual mat dimensions, material, production target, and required finishing operations.
It can be economical for suitable products, but the answer depends on the part design, cycle time, material utilization, tooling costs, labor, and quality requirements. High-volume products with complex integrated features may be better suited to injection molding. A total-cost comparison is more useful than comparing machine prices alone.
Typical checks include dimensions, thickness distribution, surface appearance, trimming quality, flexibility, shape retention, and fit. Depending on the application, additional testing may cover abrasion, heat resistance, odor, emissions, flammability, and chemical resistance.
Potentially, yes. A machine may support several designs when its forming area, heating system, mold interface, and process capabilities accommodate the different products. Each design may require its own mold and validated process settings.
Thermoforming equipment offers a manufacturing option for automotive floor mats made from suitable thermoplastic sheets. By combining controlled heating, mold forming, cooling, and trimming, manufacturers can produce mats with defined contours, raised edges, textured surfaces, and vehicle-specific outlines.
The success of the process depends on material selection, mold design, heating uniformity, thickness distribution, cooling, and final trimming accuracy. Manufacturers should also evaluate whether sheet thermoforming or injection molding is more suitable for the intended product, particularly when production volume and integrated design features influence overall cost.
For businesses planning a new car floor mat production line, the most useful starting point is a clear specification covering the target vehicle, mat dimensions, material, finished-part requirements, and annual production volume. These details provide a practical basis for selecting the forming method, machine configuration, tooling, and quality-control process.
