Mini vacuum forming machine/blister machine
Category：
- Detail
- Video
-
- Commodity name: Mini vacuum forming machine/blister machine
Small thick sheet blister machine
Equipment Features
- The equipment is operated in a double station. When the left station is heated, the right station is blister formed, saving time and improving work efficiency.
- The mechanical design is reasonable, the workmanship is fine, the structure is simple, the operation is convenient, and the performance is stable.
- Automatic operation and manual operation are arbitrarily selected, suitable for operators of various proficiency levels to operate

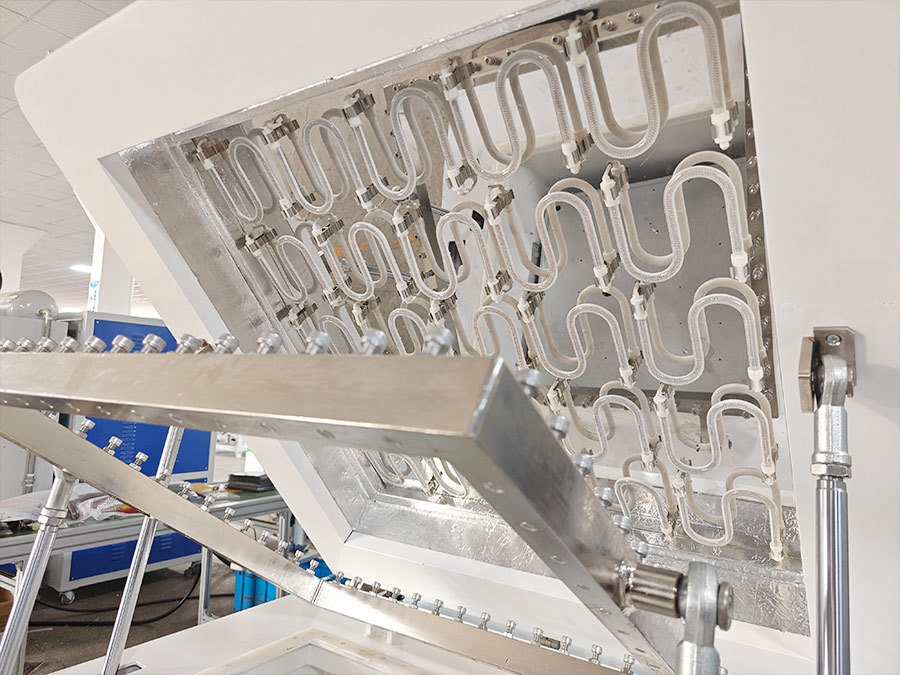

- The heating furnace adopts infrared ceramic heating bricks and an independent stepless temperature adjustment system to facilitate the processing and production of difficult products.
Application
- The equipment is suitable for blister forming of all kinds of travel bags, musical instrument bags, and trolley cases
- Commonly used PS, PMMA, ABS, PE, ASA, HIPS, EPS, PP and other thermoplastic sheets can be processed with this equipment
Technical Parameters
Serial number Technical parameters 1 Forming size 600*600 2 Forming height 200 3 Appearance size 970 length * 1050 width * 1250 height 4 Power 18KW 4 Device function Blister (concave-convex molding), resorb, activation 5 Adaptive Material Thickness 1-10mm 6 Work Efficiency 20-50/h 7 Electric Furnace Power 80KW 8 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 9 Machine Dimension（L*W*H） 4160*1850*2650mm

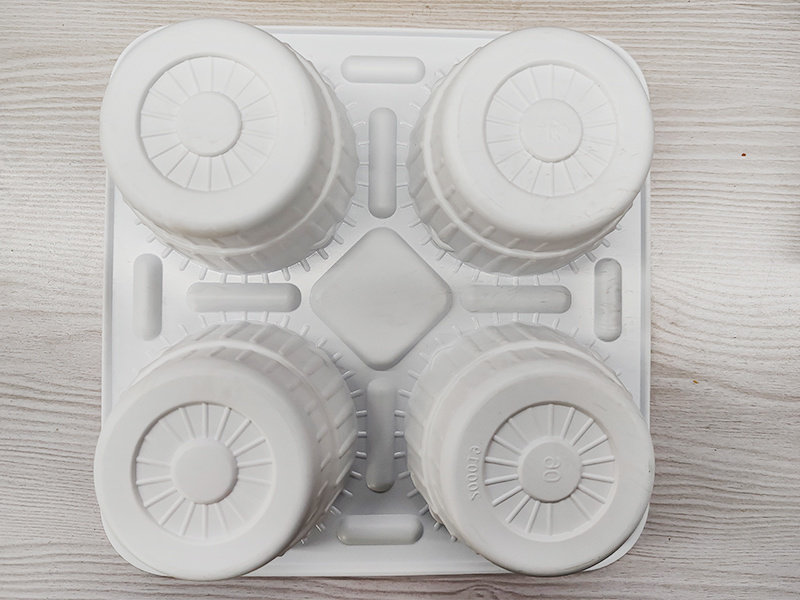

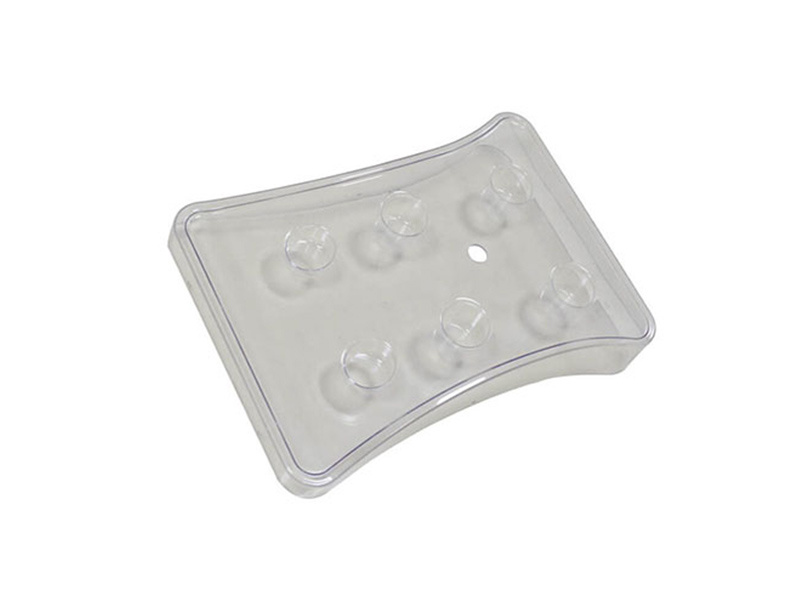

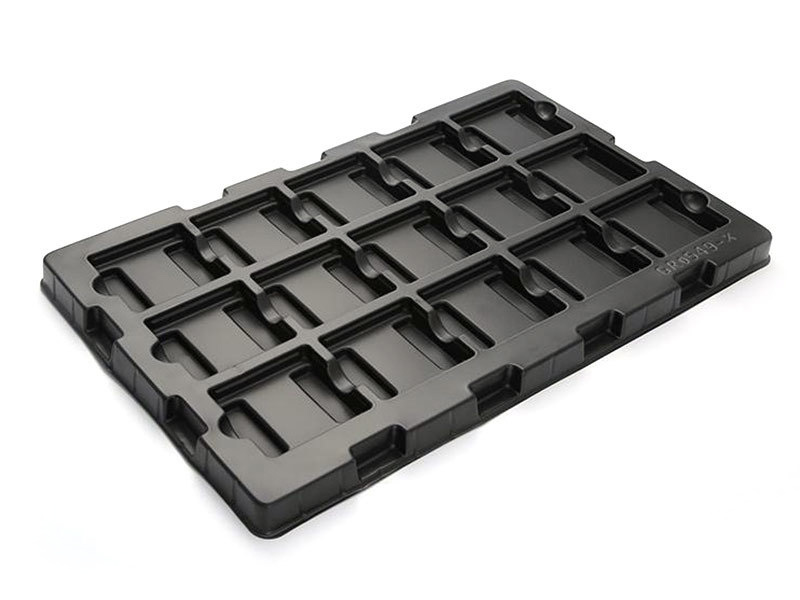

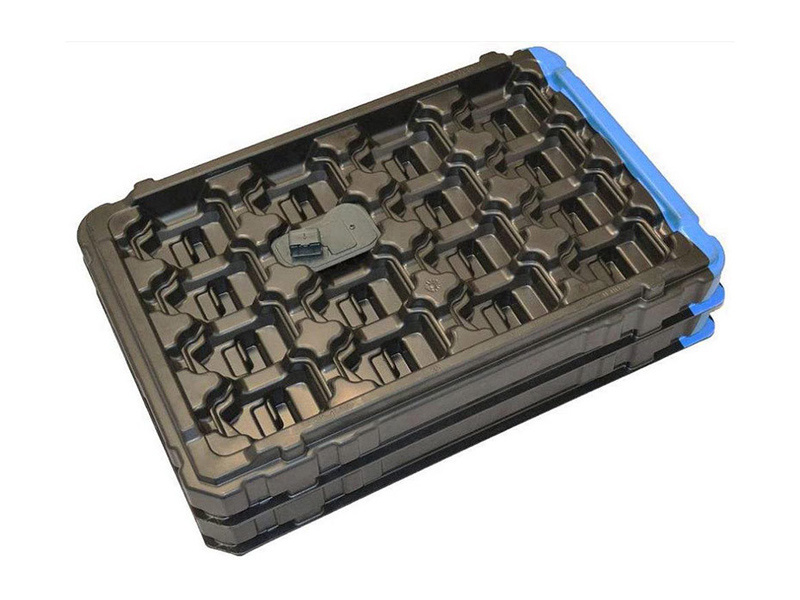

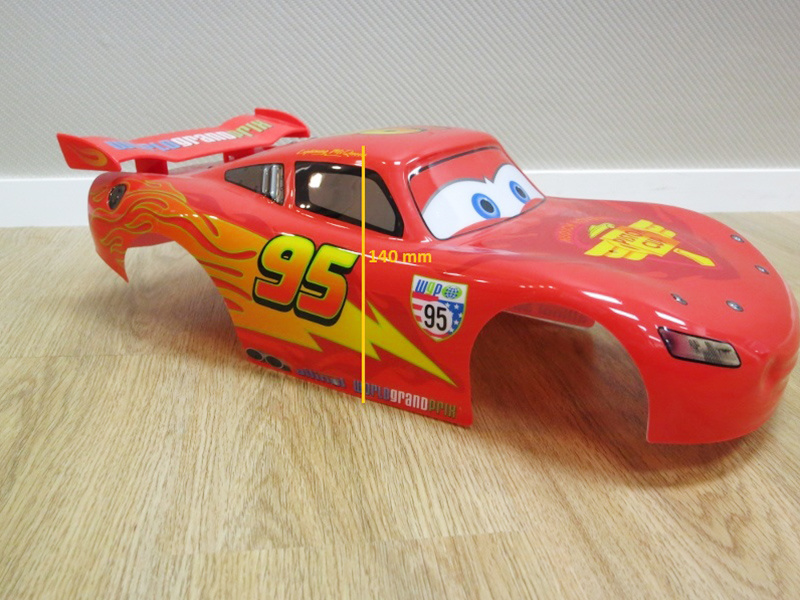

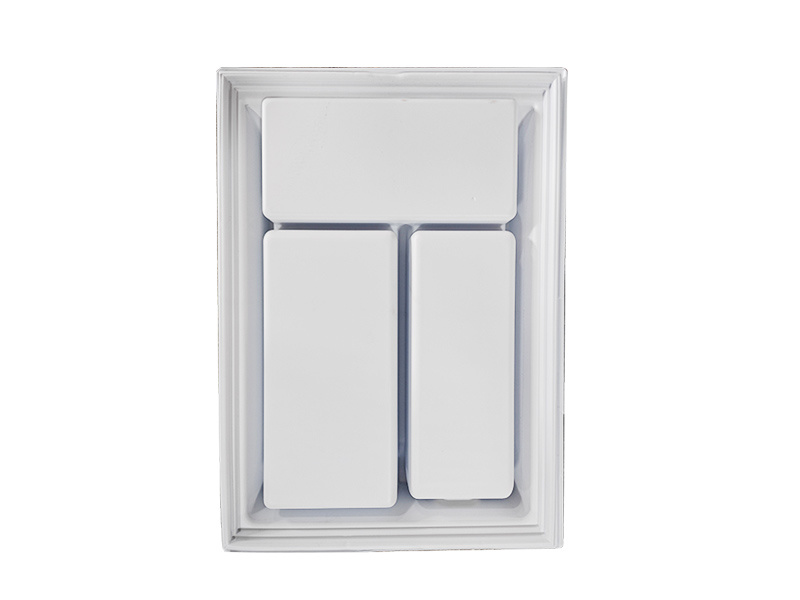

Real shot sample
Qualification
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
EU DECLARATION
CE certification
