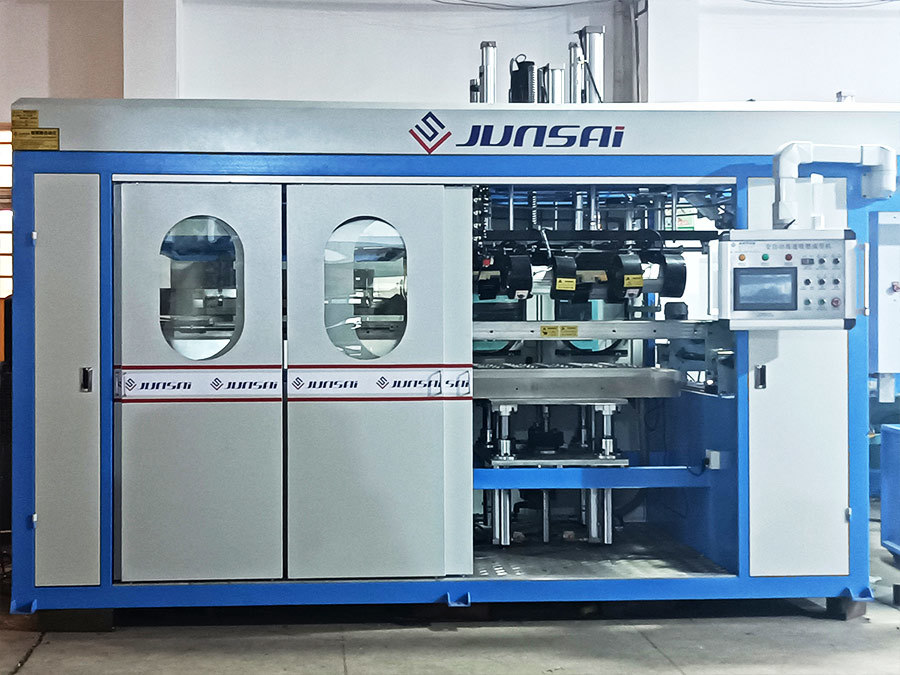

Servo Drive Vacuum Forming Machine
Servo motor drive, high-speed molding.
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Servo Drive Vacuum Forming Machine
Servo motor drive, high-speed molding.
Further Observation
Equipment Features
- Servo motor drive, high-speed molding.
- Equipped with imported components, PLC high-definition industrial touch screen controls the operating parameters.
- Fault self-inspection, real-time display of fault information, provision of troubleshooting measures, easy after-sales maintenance.
- Blowback release device, products that are difficult to release can be easily released, reducing product damage and scrap caused by release.
Application
- Automatic feeding and automatic cutting of the whole sheet cannot independently complete the whole process from raw materials to finished products. It is necessary to cooperate with the cutting machine to complete the production of finished products.
- Suitable for PP, PE, APET, PVC, PETG, PS, ABS, EPS, HIPS and other materials.
Technical Parameters
Serial number Technical parameters 1 Molding Length 550-1220mm 2 Molding Width 450-710mm 3 Forming Height 150mm 4 Adaptive Material Thickness 0.1-2mm 5 Empty Machine Running speed 10-14 mold /min 6 Total Power 40kw ( left and right ) 7 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Machine Dimension( L*W*H ) 7200x1700x2300mm 9 Machine weight 3.5T (approximately weight)

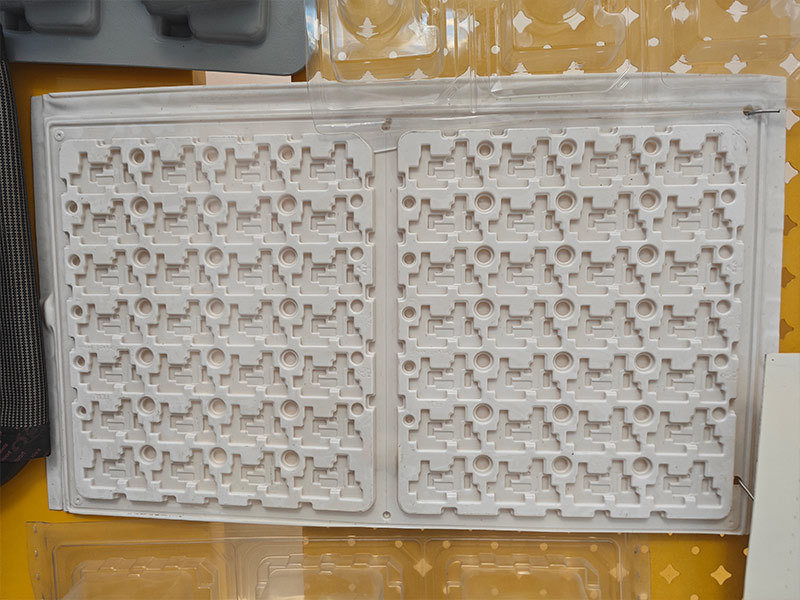

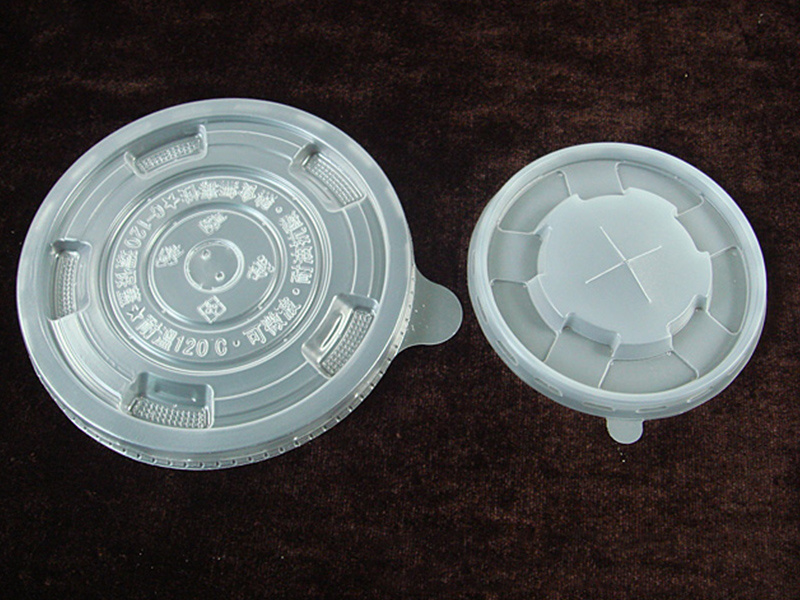

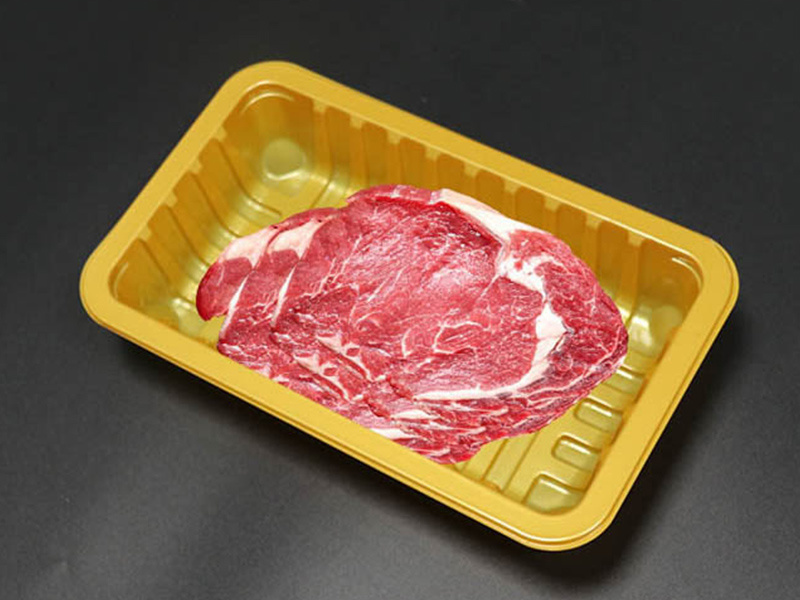

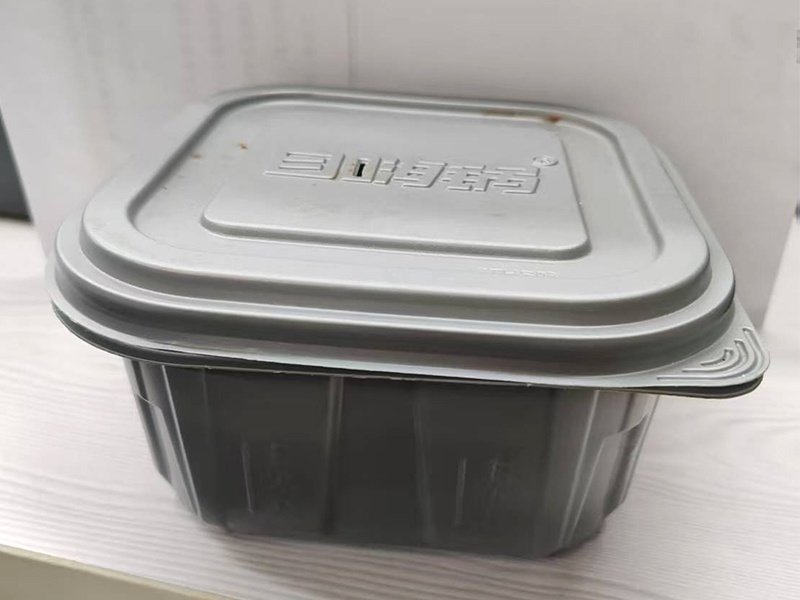

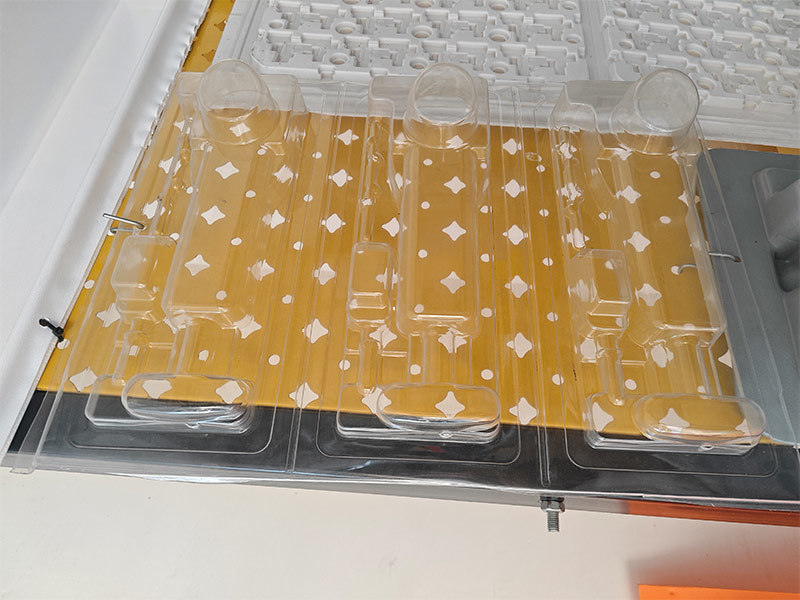

Real shot sample
