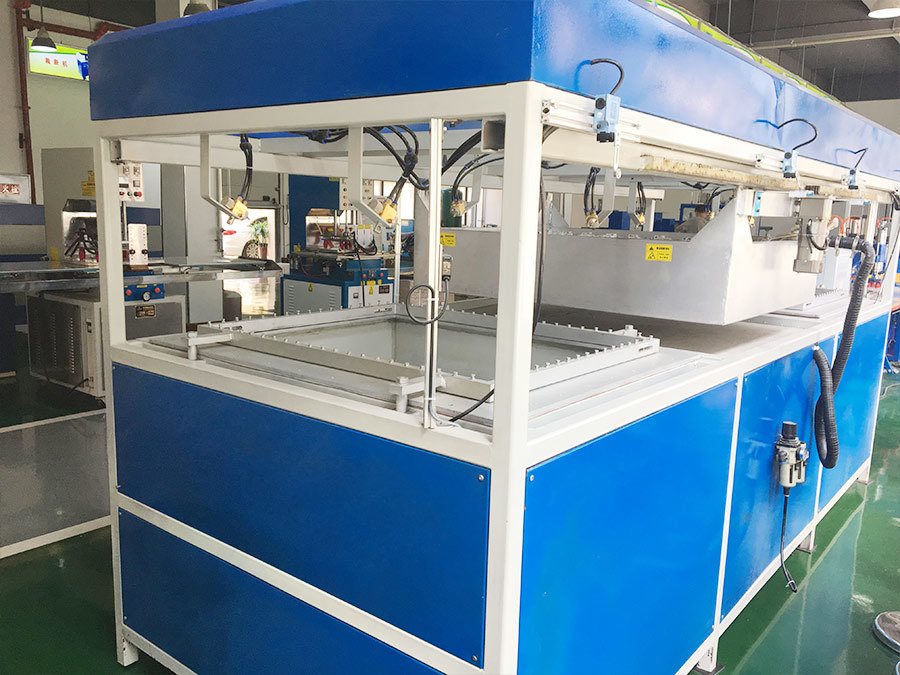

- Commodity name: Bag/Suitcase Vacuum Forming Machine
Further Observation
Equipment Features
- The equipment is operated in a double station. When the left station is heated, the right station is blister formed, saving time and improving work efficiency.
- The mechanical design is reasonable, the workmanship is fine, the structure is simple, the operation is convenient, and the performance is stable.
- Automatic operation and manual operation are arbitrarily selected, suitable for operators of various proficiency levels to operate
- The heating furnace adopts infrared ceramic heating bricks and an independent stepless temperature adjustment system to facilitate the processing and production of difficult products.
Application
- The equipment is suitable for blister forming of all kinds of travel bags, musical instrument bags, and trolley cases
- Commonly used PS, PMMA, ABS, PE, ASA, HIPS, EPS, PP and other thermoplastic sheets can be processed with this equipment
Technical Parameters
Serial number Technical parameters 1 Luggage size 16/18/20/22/24/26/28（Other sizes can be customized） 2 Adaptive Material Thickness 1-10mm 3 Work Efficiency 20-50/h 4 Electric Furnace Power 80KW 5 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 6 Machine Dimension（L*W*H） 4160*1850*2650mm

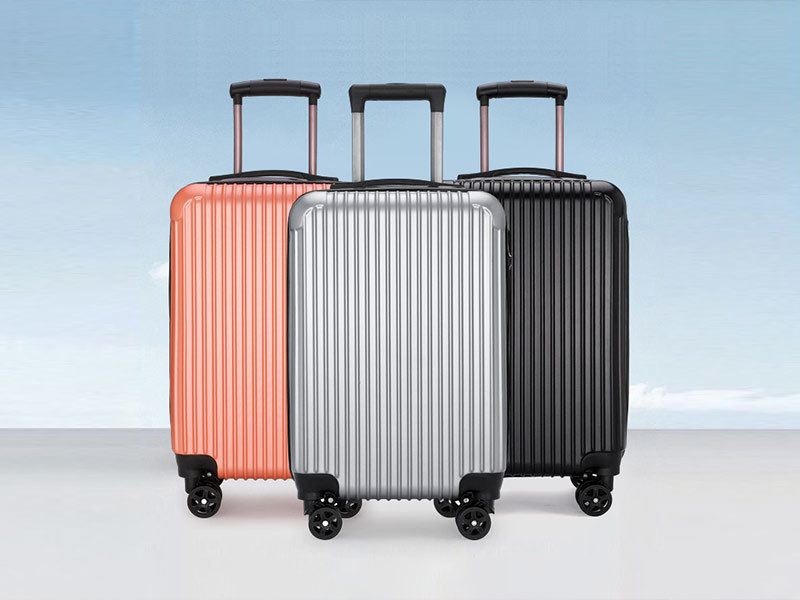

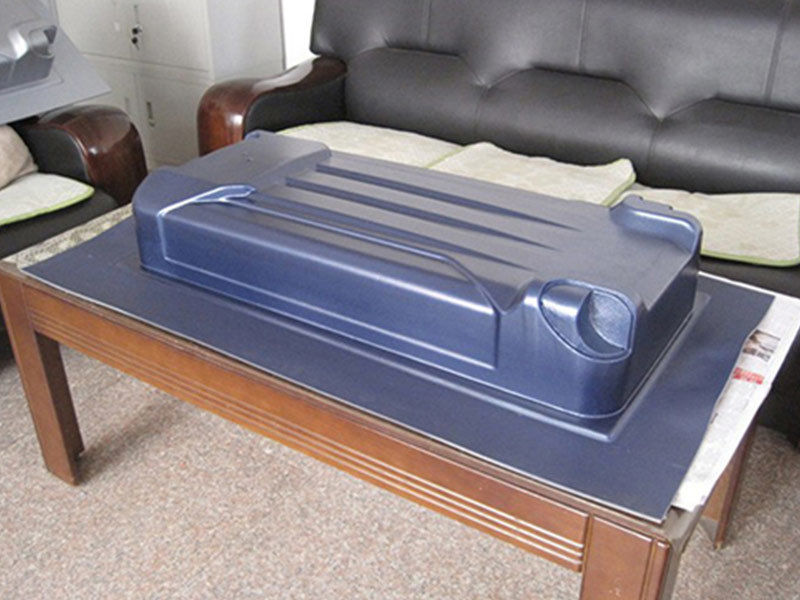

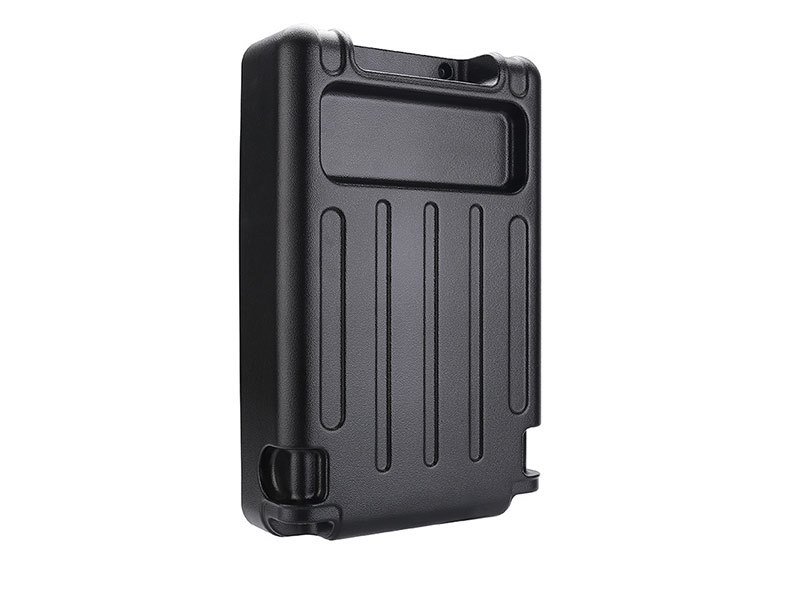

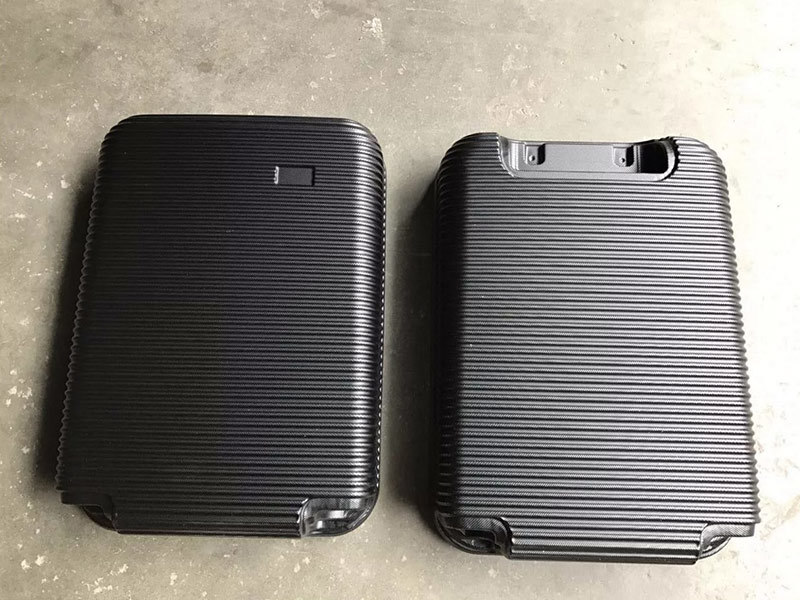

Real shot sample
