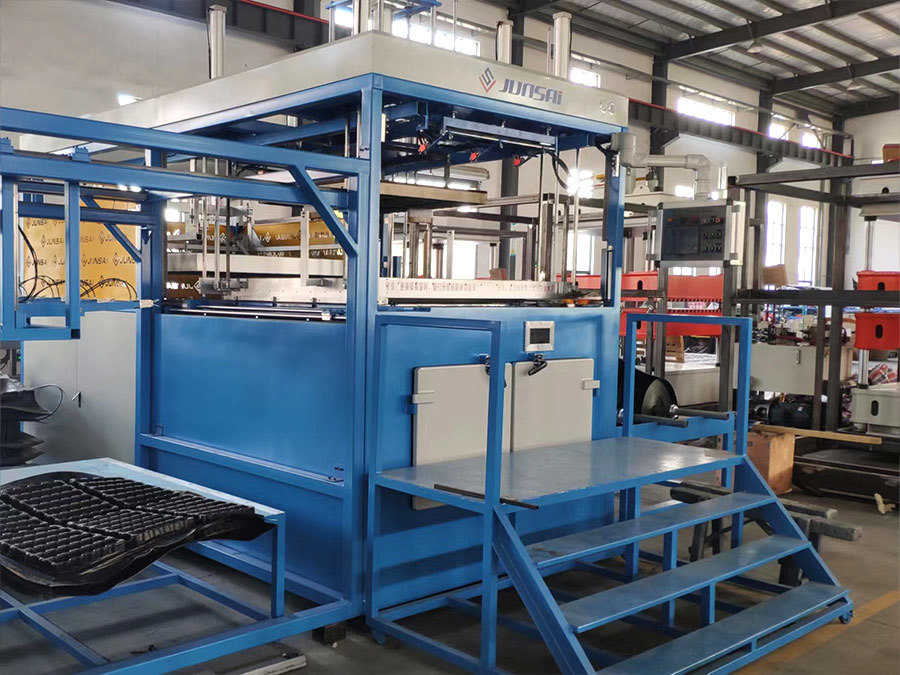

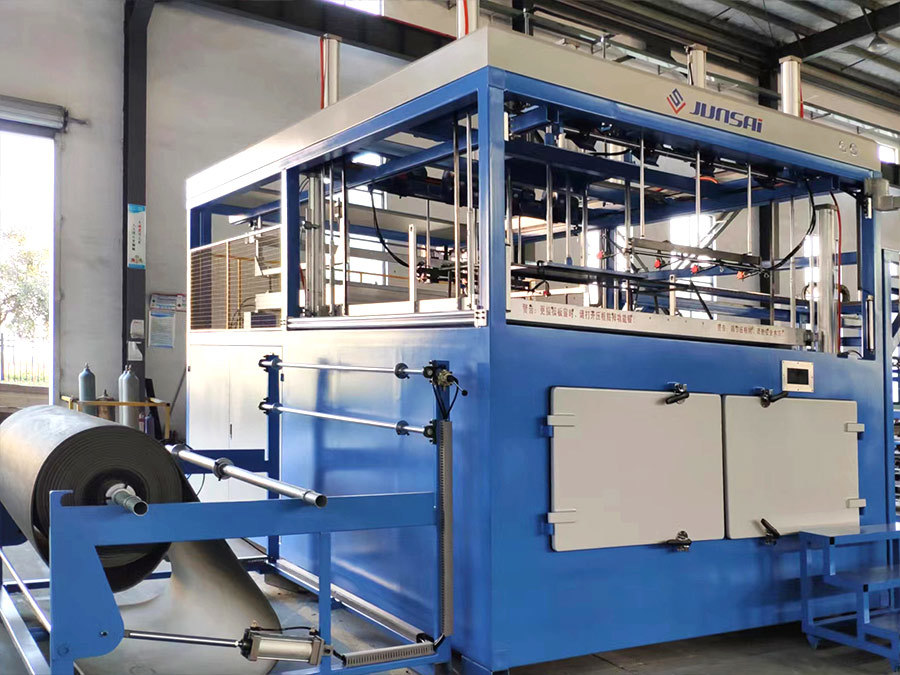

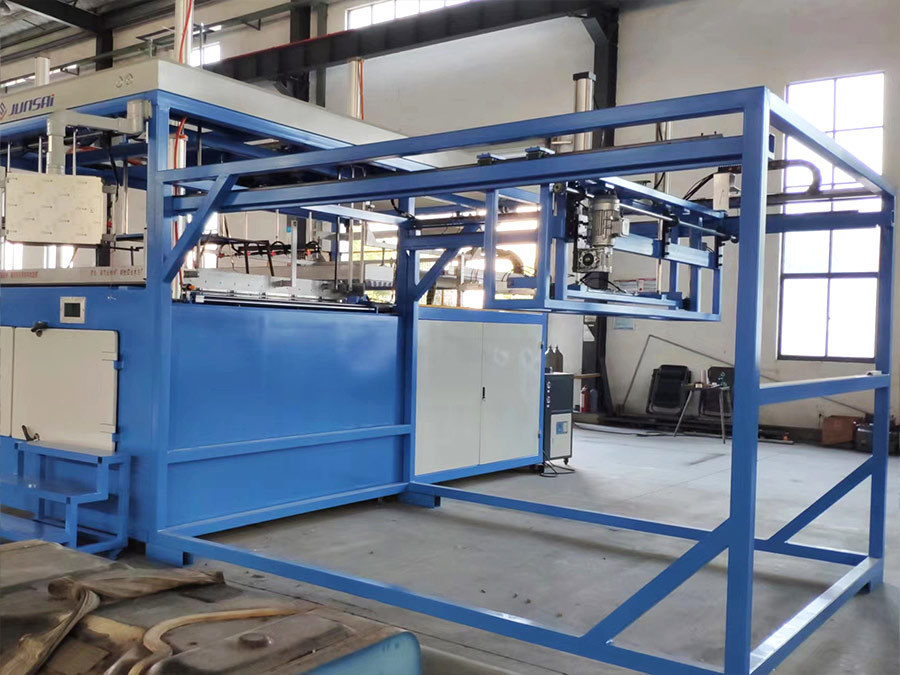

- Commodity name: Roll/Sheet Universal Thick Sheet Vacuum Forming Machine
Further Observation
Equipment Features
- One device can use both coil raw materials and sheet raw materials.
- The variable frequency motor moves the heating furnace to accurately adjust the moving speed of the heating furnace.
- The tablet press frame is equipped with a balance synchronizer, which makes the lifting more stable.
- The heating furnace can be turned on and off instantly, improving heating efficiency, reducing heating time, and saving energy.
Application
- This equipment is suitable for both coil raw materials and sheet raw materials, ABS, HDPE, PE, PC, PS, PVC, PMMA, PP and other thermoplastic materials can be blister.
- Widely used in automotive interior and exterior decoration parts, logistics turnover pallets, aviation interior parts, high-speed rail interior parts, equipment and instrument housings, medical exterior parts and other fields.
Technical parameters
Serial number Technical parameters 1 Molding Length 2500mm ( Customizable ) 2 Molding Width 1500mm ( Customizable ) 3 Forming Height 600mm ( Customizable ) 4 Adaptive Material Thickness 1-10mm 5 Total Power 230kw (left and right) 6 Power Capacity Three-phase four-wire system, 380V, 50HZ, voltage fluctuation range ±10% 7 Machine Dimension(L*w*H) 9000*3300*3900mm 8 Machine weight 9.7T (approximately weight)

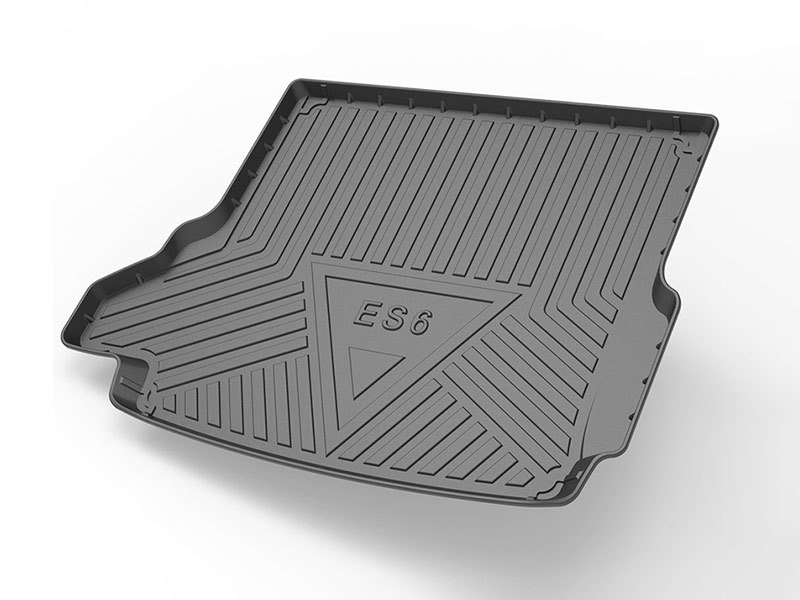

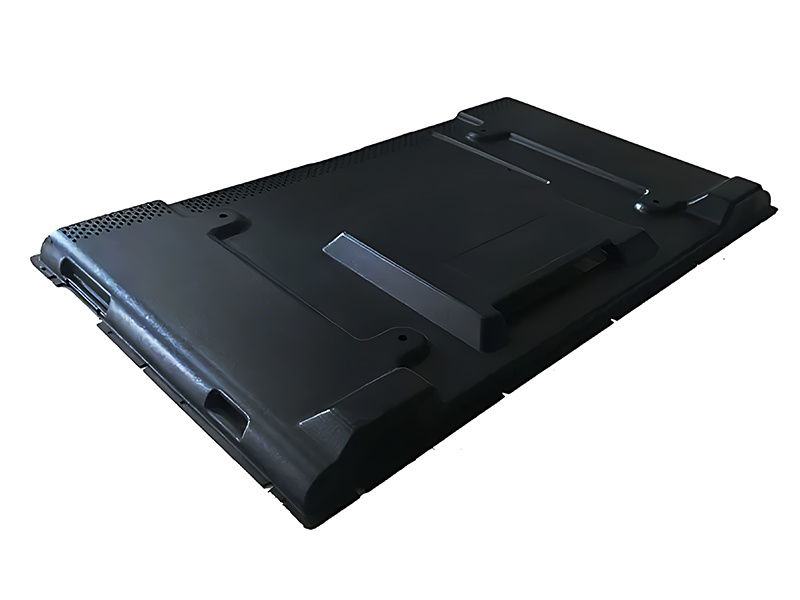

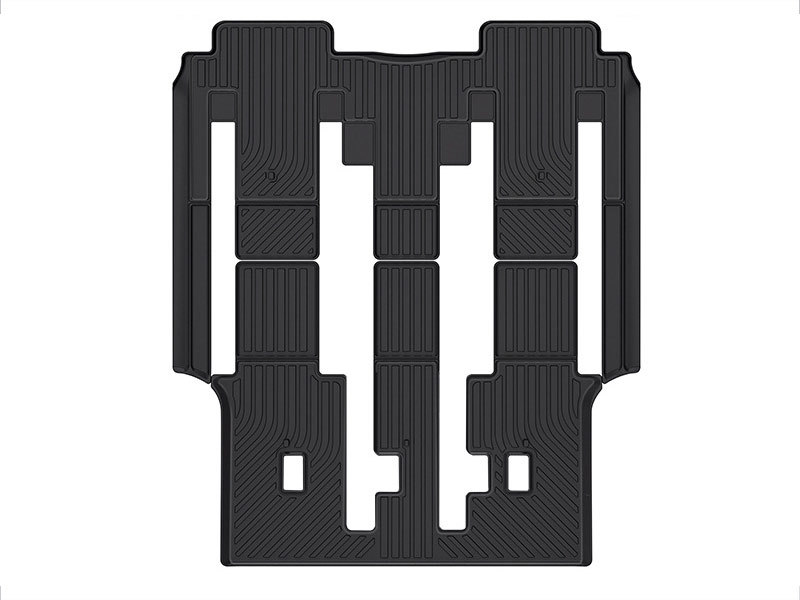

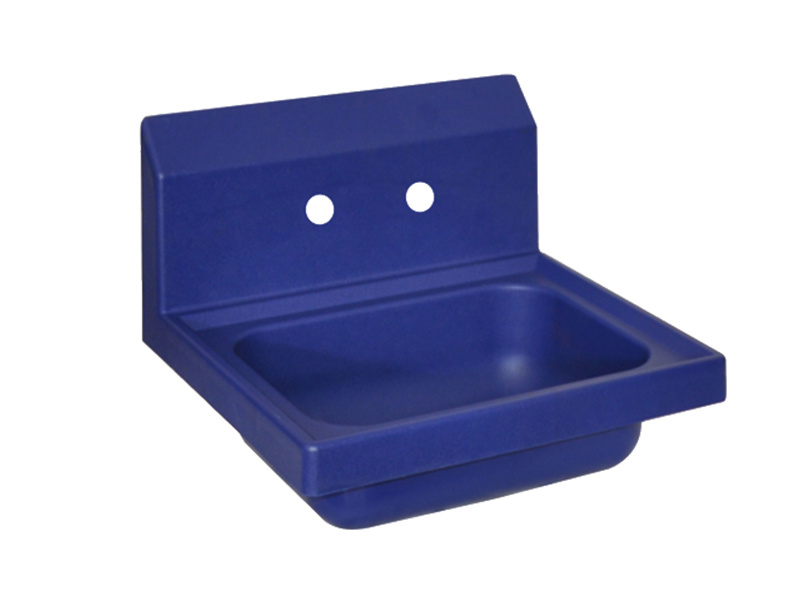

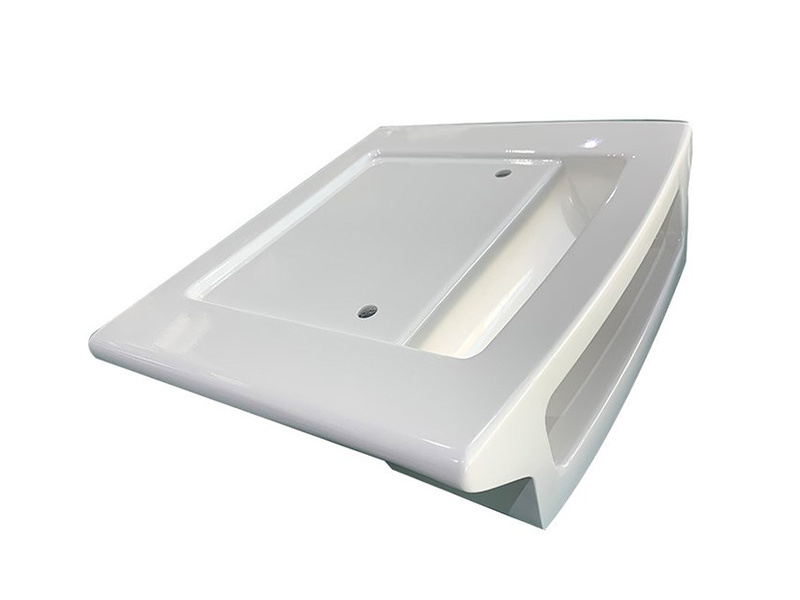

Real shot sample
