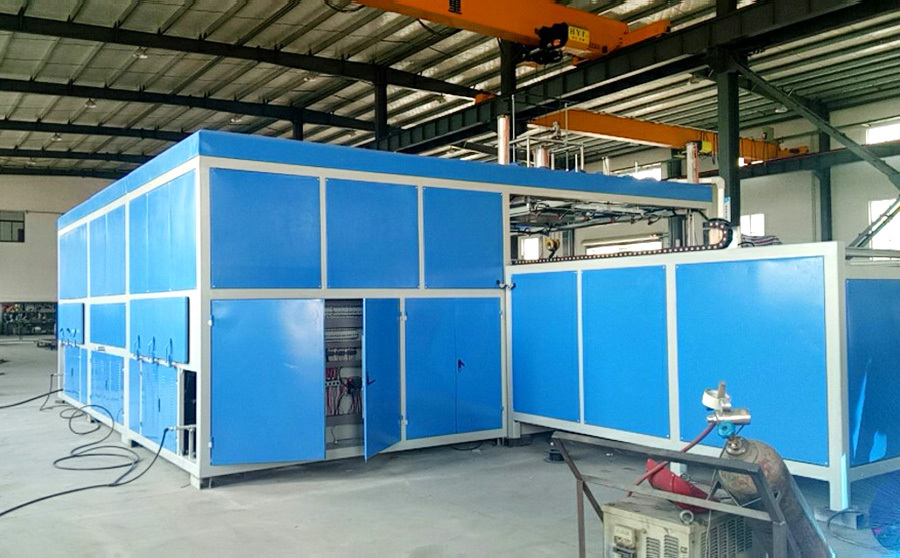

Double Station Automatic Loading And Unloading Thick Plate Vacuum Forming Machine
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Double Station Automatic Loading And Unloading Thick Plate Vacuum Forming Machine
Further Observation
Equipment Features

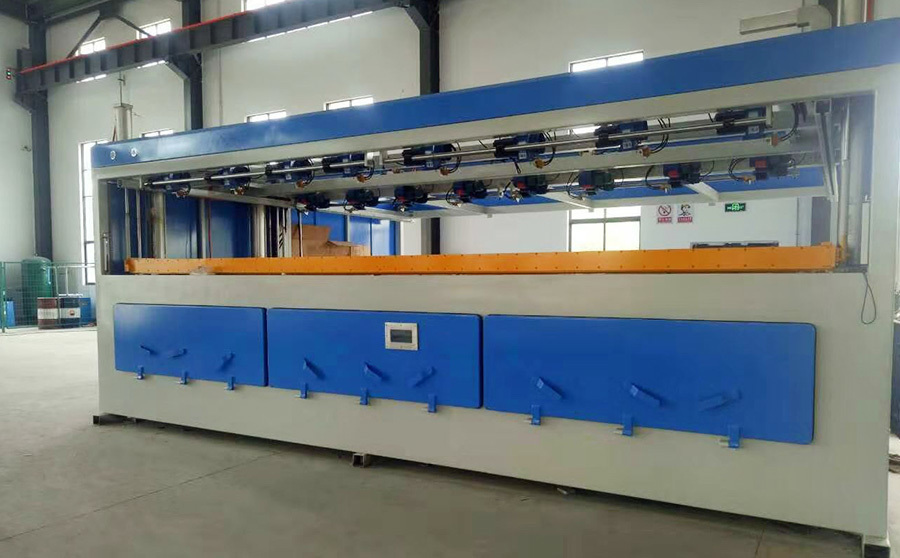

- The feeding system has the function of automatic alignment and correction. The feeding suction cup meets the adsorption force of the heaviest plate, the adsorption process is stable, and there is no jitter, off-plate, multi-suction, etc. The suction cups are arranged in parallel to prevent the plates from falling off after the failure of individual suction cups.
- The two stations of the upper furnace are used together, and the two stations of the lower furnace are used independently. The main heating and auxiliary heating of the upper and lower furnaces can be switched between each other.
- The mold base of the equipment is equipped with a mold limit block and a quick guide positioning column. The mold change loading and unloading operation is simple and stable, and the mold platform can withstand a maximum weight of 600KG.
Application
- Fully automatic loading and unloading thick sheet vacuum blister forming machine, specially designed for the characteristics of thermoplastic materials such as ASA, ABS, PMMA, HDPE, HIPS, PE, PC, PVC+ABS, PS and so on.
- It is widely used in the blister molding of plastic products such as automotive interior parts, turnover pallets, pallet pallets, equipment housings, aviation high-speed rail interiors, etc.
Technical Parameters
Serial number Technical parameters 1 Molding Length 2700mm ( Customizable ) 2 Molding Width 1800mm ( Customizable ) 3 Forming Height 500mm ( Customizable ) 4 Adaptive Material Thickness 1-10mm 5 Production Speed According to different material composition and material thickness 6 Furnace Power 396KW 7 Total Power 420KW (approximately) 8 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 9 Machine Weight(L*w*H) 15000*7500*4200mm

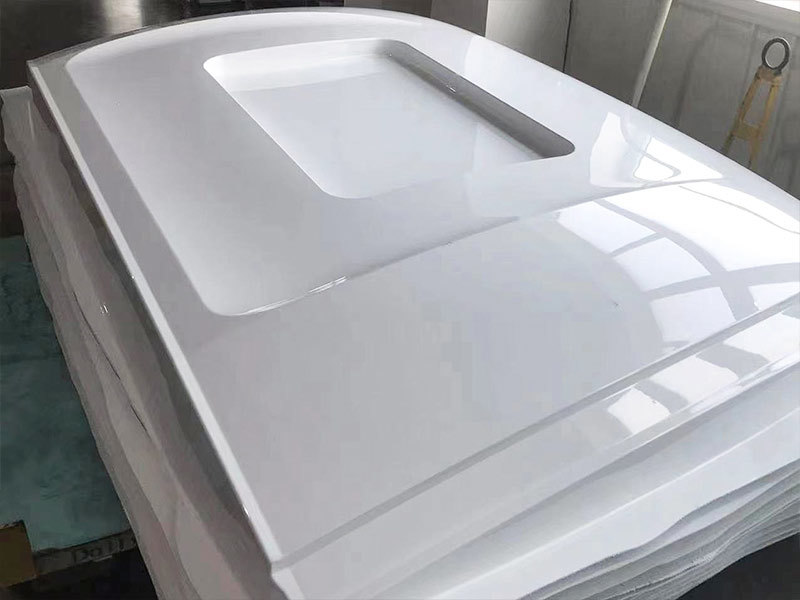

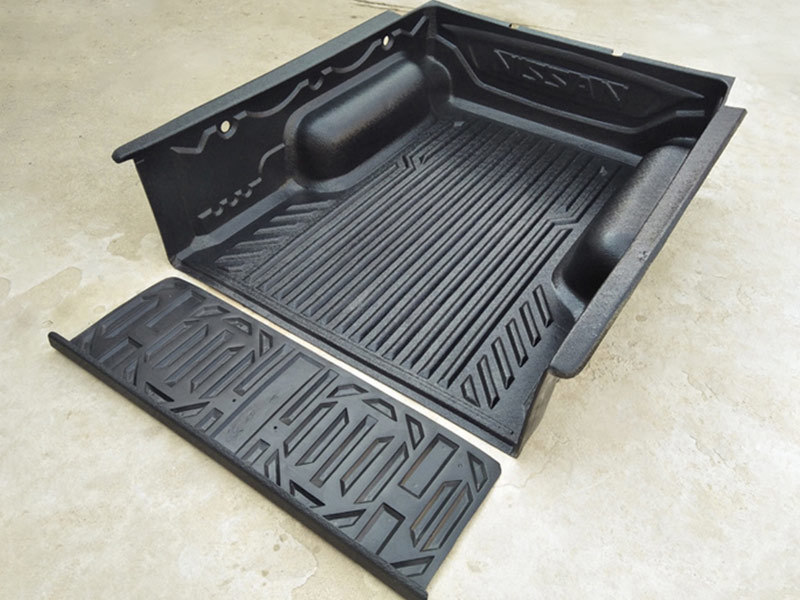

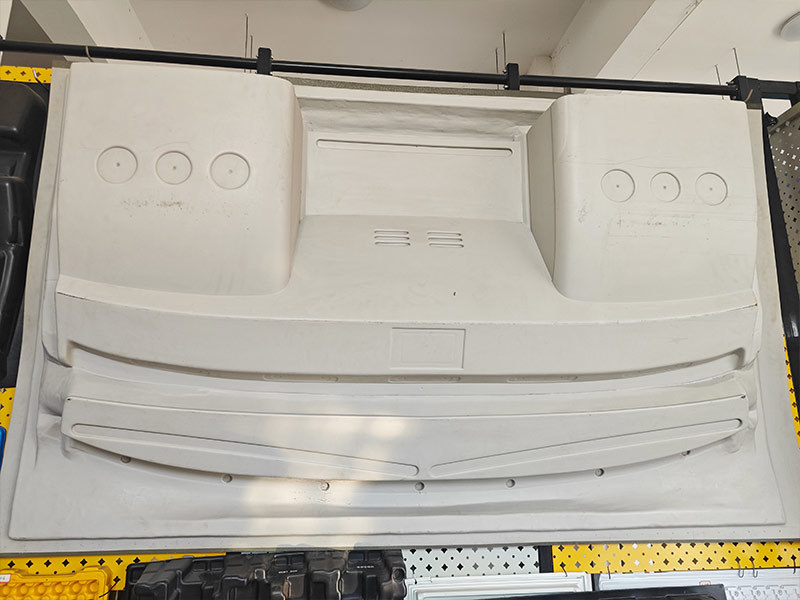

Real shot sample
