Positive And Negative Pressure Three Station Vacuum Molding Integrated Machine
There are three mold change systems: quick mold loading, pneumatic automatic mold locking, and front mold change.
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Positive And Negative Pressure Three Station Vacuum Molding Integrated Machine
There are three mold change systems: quick mold loading, pneumatic automatic mold locking, and front mold change.
Further Observation
Equipment Features
- There are three mold change systems: quick mold loading, pneumatic automatic mold locking, and front mold change.
- Intelligent temperature control: the voltage and temperature can be adjusted, and the production can be started in 5 minutes.

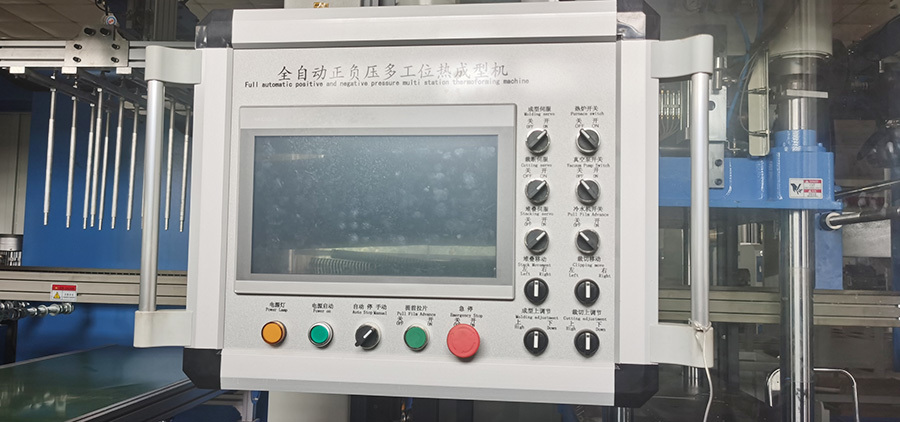

- Intelligent control system, the equipment can automatically stop due to parameter setting errors and operation errors.
- The equipment can store 300 sets of blister data parameters, and has a fault self-inspection system, which makes debugging easier.
Application
- Suitable for PLA, corn starch, PP, PE, APET, PVC, PETG, PS, ABS, EPS, HIPS and other materials.
- The blister processing of rectangular, square, triangular, round and irregular products with high transparency and high tensile ratio can be completed.
Technical Parameters
Serial number Technical parameters 1 Molding Length 610mm ( Customizable ) 850mm ( Customizable ) 2 Molding Width 710mm ( Customizable ) 710mm ( Customizable ) 3 Stroke Height 150mm 4 Adaptive Material Thickness 0.15-1.8mm 5 Empty Machine Running Speed 25 mold /min 6 Cutting Pressure 60-80T 7 Power capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Total Power 95KW (left and right) 9 Machine Dimension（L*W*H） 11000*2400*3200mm 10 Machine weight 13T (approximately weight)

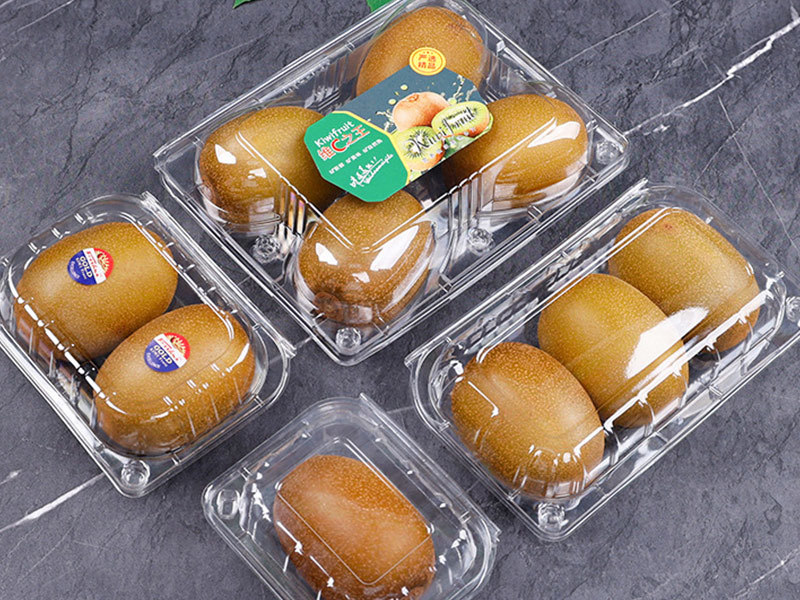

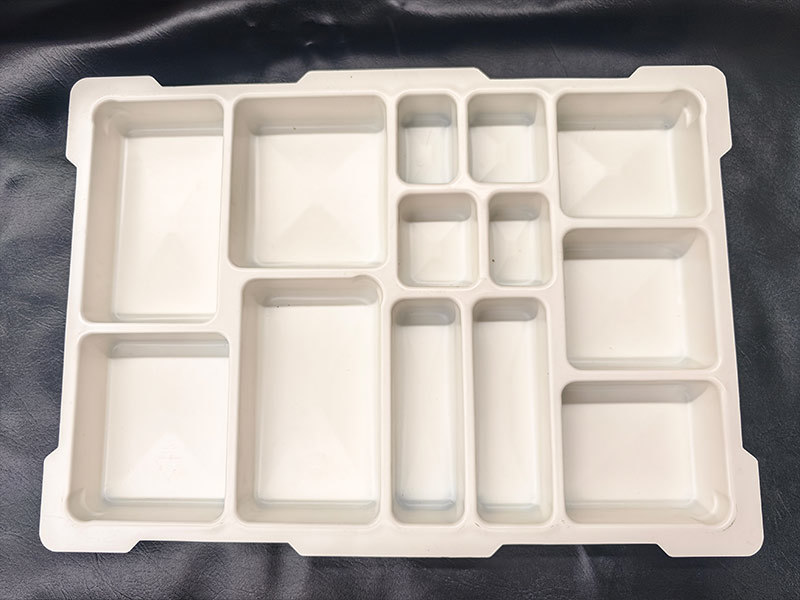

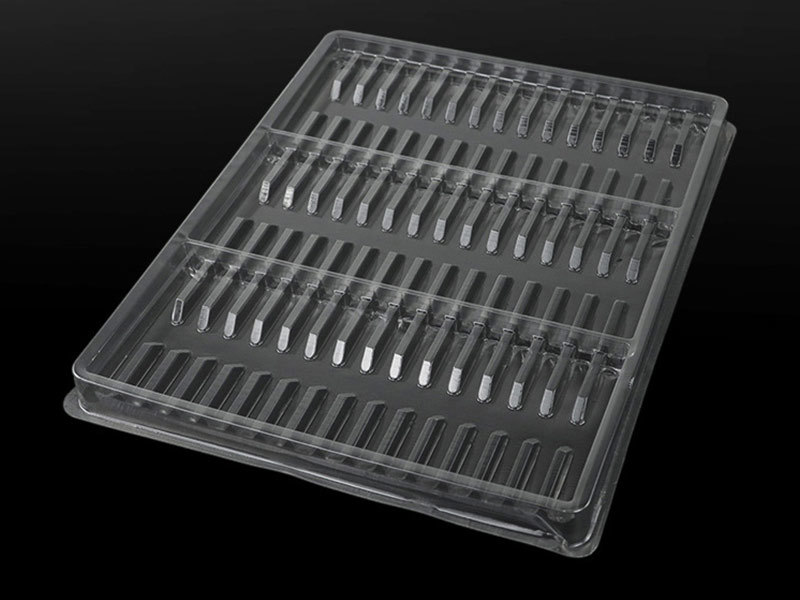

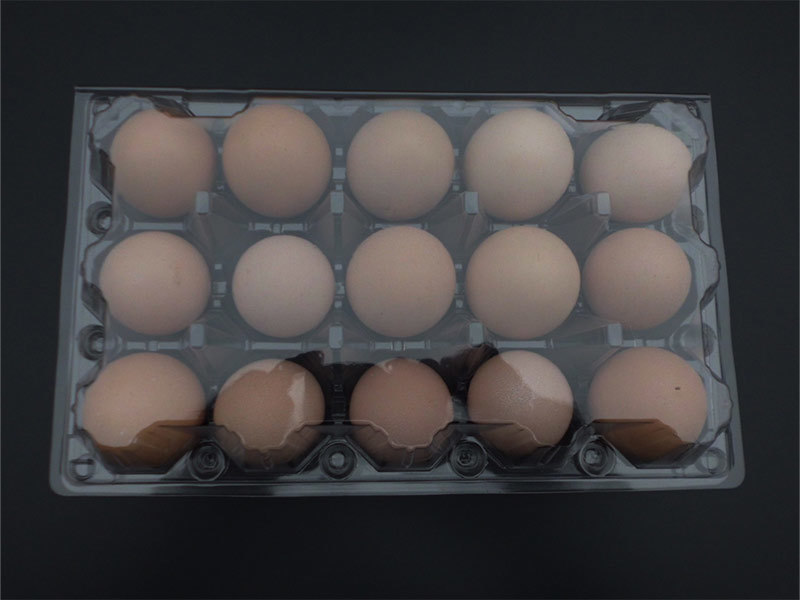

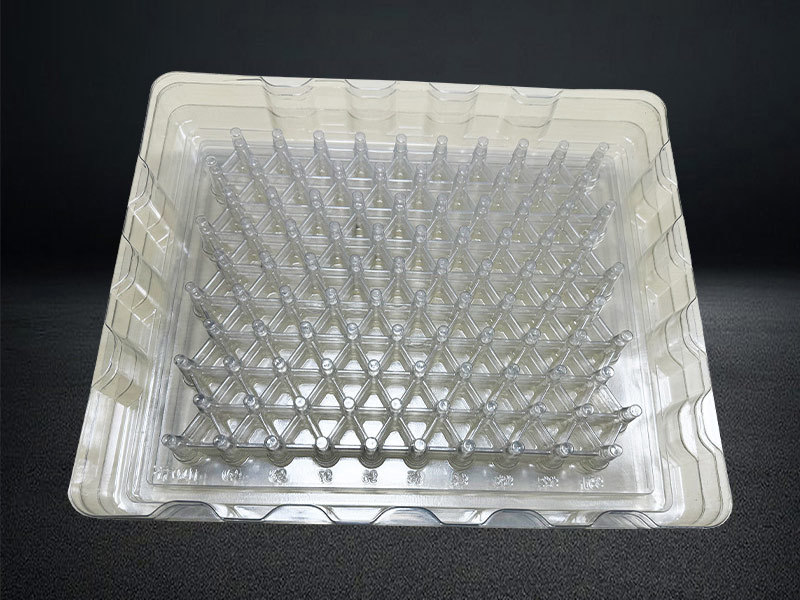

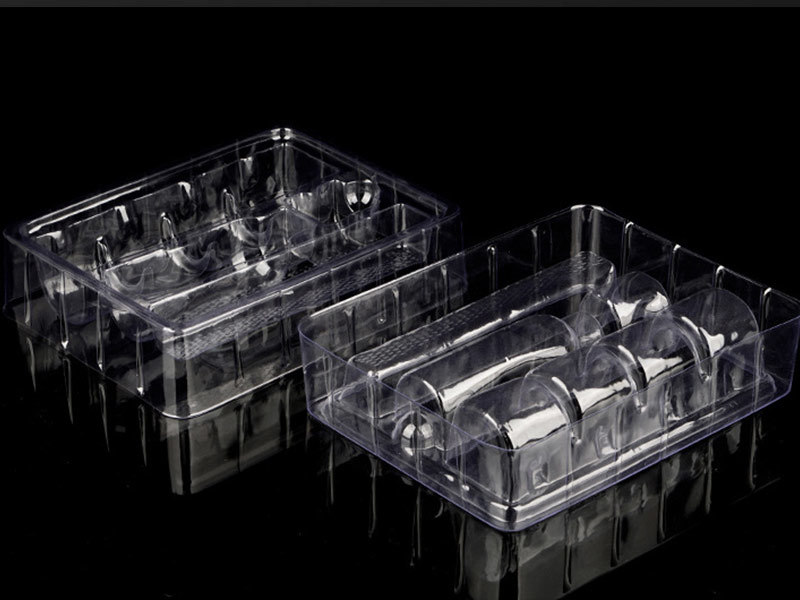

Real shot sample
