Negative Pressure Three Station Vacuum Molding Integrated Machine
There are two ways to choose from: electric feeding and pneumatic feeding.
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Negative Pressure Three Station Vacuum Molding Integrated Machine
There are two ways to choose from: electric feeding and pneumatic feeding.
Further Observation
Equipment Features
- There are two ways to choose from: electric feeding and pneumatic feeding. A feeding sensor is installed in the feeding area to intelligently identify the feeding distance and reduce the friction loss of the feeding roller to the raw material.
- Intelligent temperature adjustment, constant blowing air volume, the use of hot air to blow up the material to reduce stretching, and the use of degradable materials can also avoid the falling of baked slices.
- PLC temperature control, the temperature inside and outside the electric furnace is consistent, the wall thickness of the finished product is uniform, the defect rate is low, and the material loss is reduced.
Application
- Suitable for blister packaging processing of bowls, dishes, lids, trays and other shapes
- Used in many fields such as food, daily necessities, cosmetics, electronic components, hardware packaging, etc.
Technical Parameters
Serial number Technical parameters 1 Molding Length 850mm ( Customizable ) 2 Molding Width 700mm ( Customizable ) 3 Stroke Height 150mm ( Customizable ) 4 Adaptive Material Thickness 0.15-1.8mm 5 Hot Furnace Mode Side retreat of the upper and lower furnaces (two-stage heating) 6 Total Power 95KW 7 Power Capacity Three-phase four-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Machine Dimension（L*W*H） 10500*2500*3200mm 9 Machine weight 10T (approximately weight)

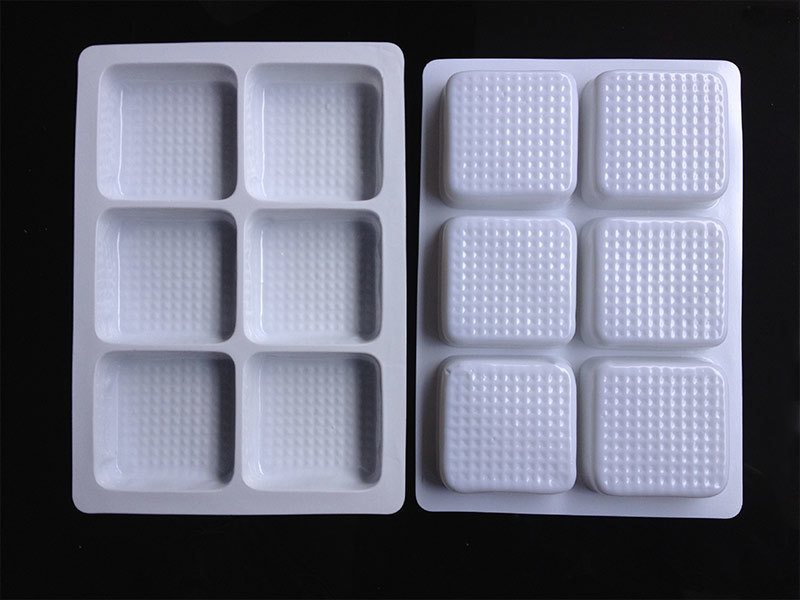

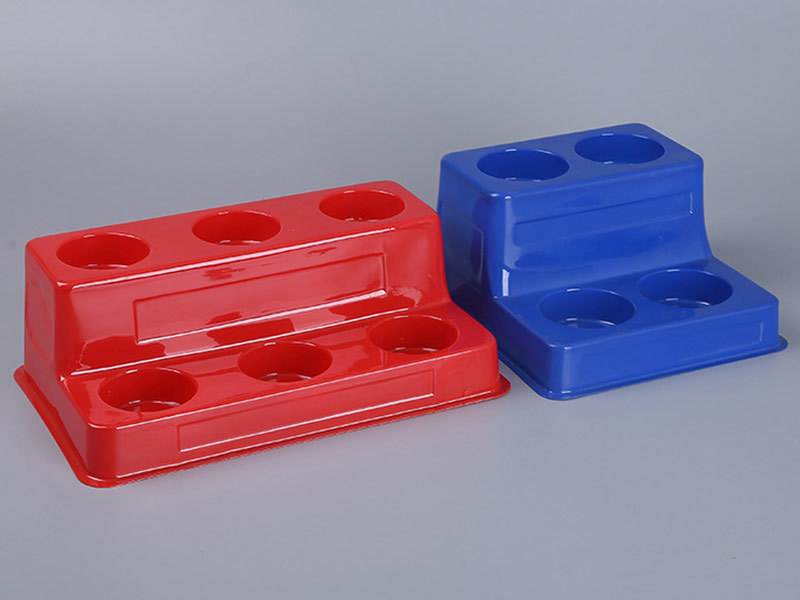

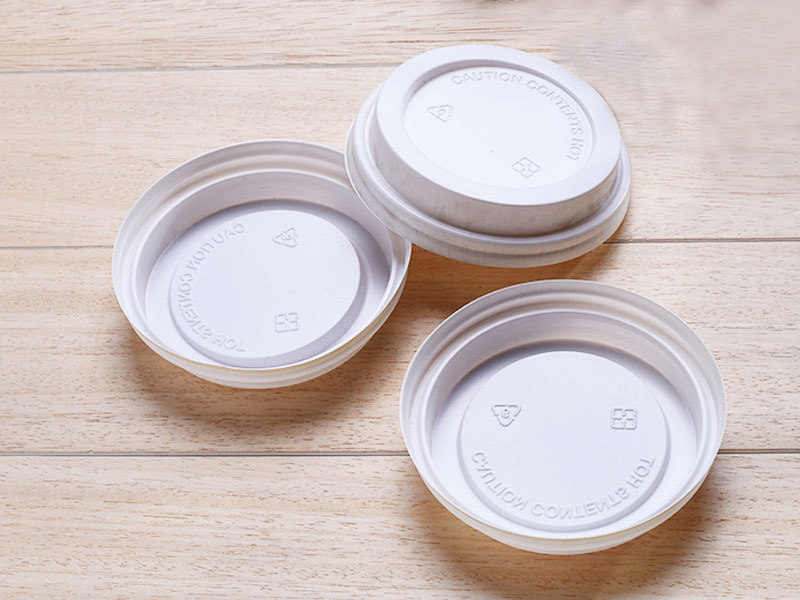

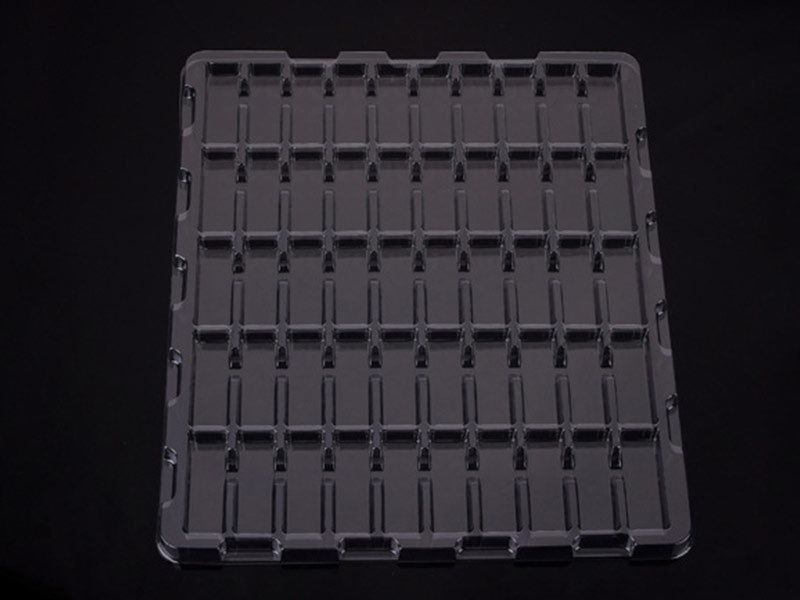

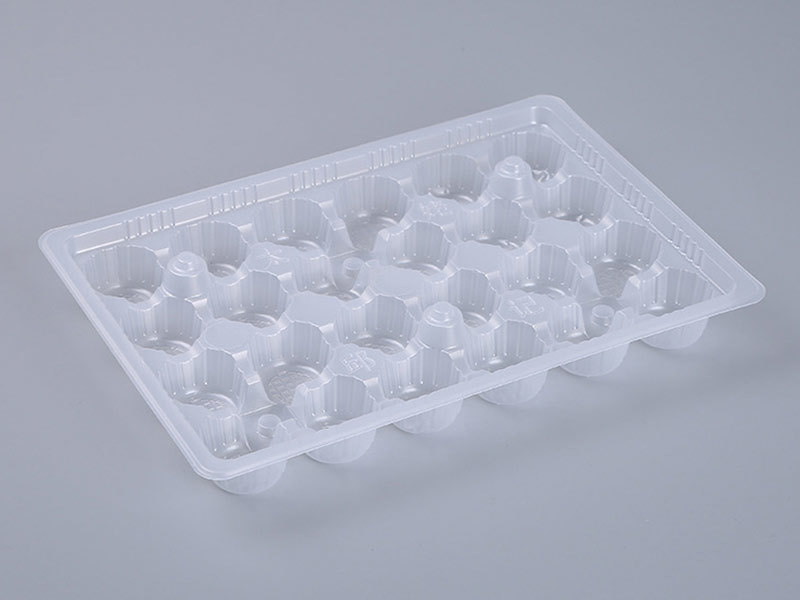

Real shot sample
Qualification
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
EU DECLARATION
CE certification
