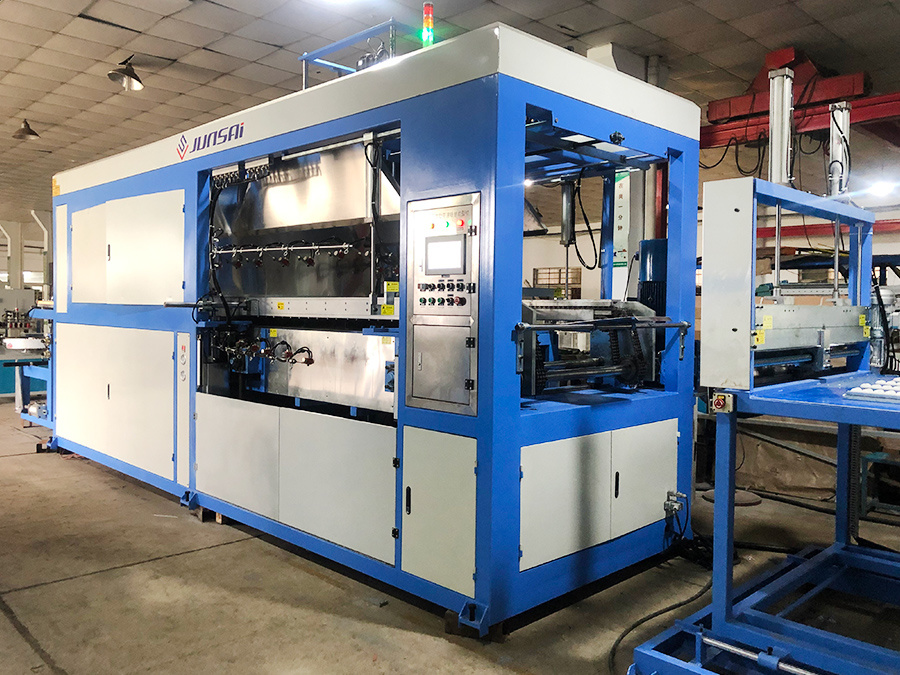

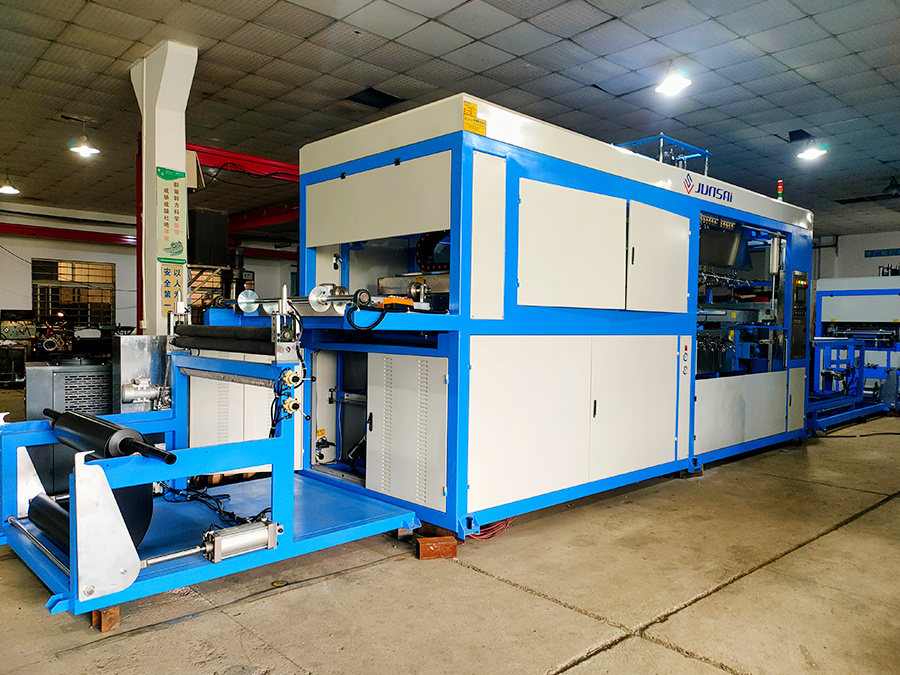

Cylinder Drive Vacuum Forming Machine

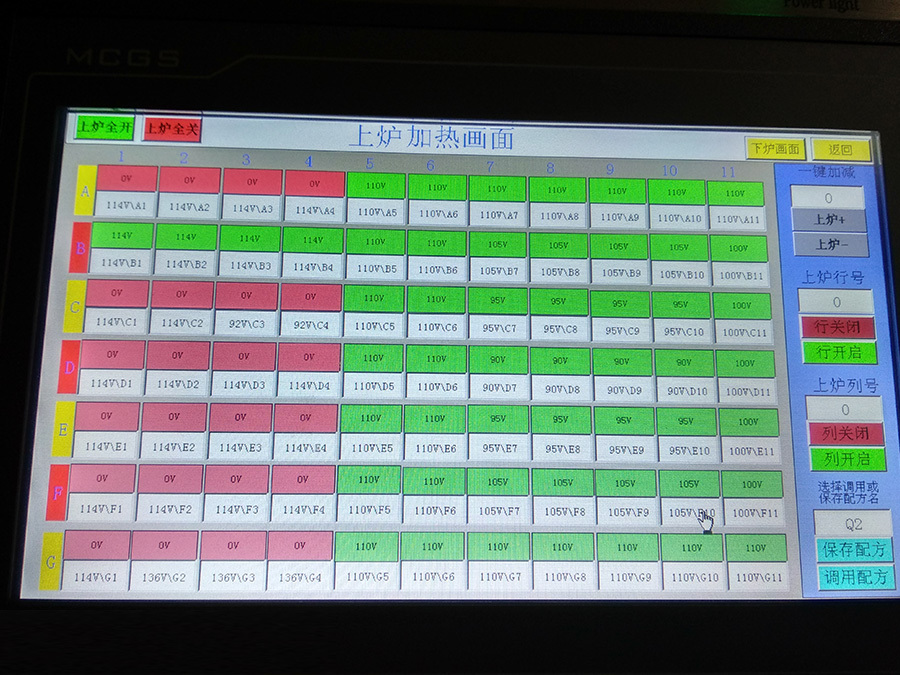

The fixed base plate of the heating plate is made of stainless steel plate, which is not easy to deform after heating.
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Cylinder Drive Vacuum Forming Machine
The fixed base plate of the heating plate is made of stainless steel plate, which is not easy to deform after heating.
Further Observation
Equipment Features
- The fixed base plate of the heating plate is made of stainless steel plate, which is not easy to deform after heating.
- The heating furnace is heated by heating bricks, the furnace body is insulated with lead silicate, and it is equipped with cold air equipment, which is specially used for molds and atomized cooling water to ensure the continuous and rapid production of the machine.
- The secondary vacuum, vacuum delay, and vacuum forming can be arbitrarily controlled for different materials.
Application
- The equipment uses vacuum suction to suck heated PVC, PE, PP, PET, PC, ABS, HDPE, HIPS and other thermoplastic coils into various shapes of packaging products.
- Suitable for food, toys, hardware, stationery, electrical appliances, medical care, automotive supplies and other packaging industries.
Technical Parameters
Serial number Technical parameters 1 Molding Length 550-1220mm 2 Molding Width 450-710mm 3 Forming Height 150mm 4 Adaptive Material Thickness 0.1-2mm 5 Empty Machine Running Speed 8-12 mold /min 6 Total Power 35kw (left and right) 7 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Machine Dimension（L*W*H） 7200x1700x2300mm 9 Machine weight 3.5T (approximately weight)

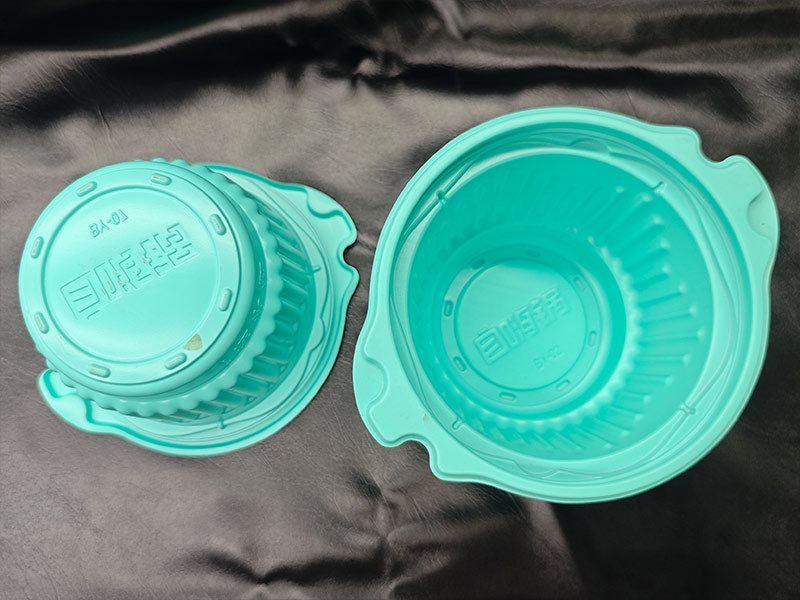

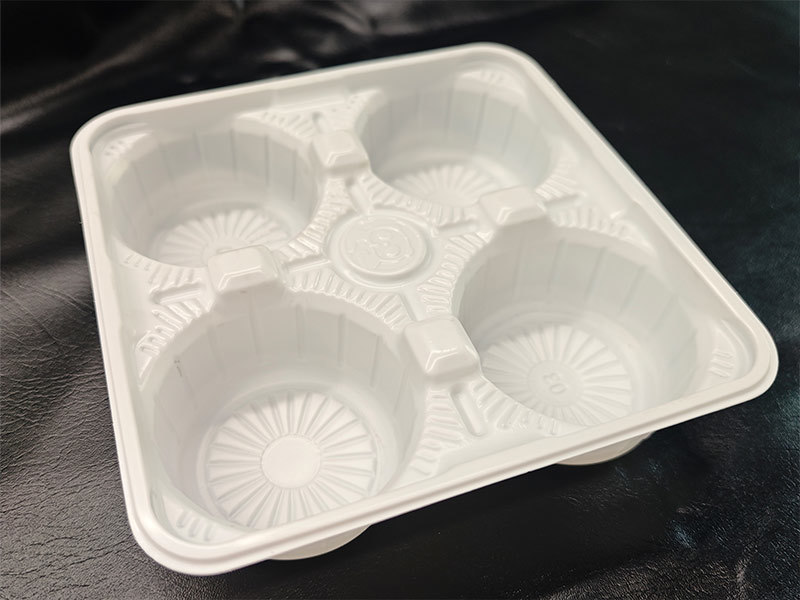

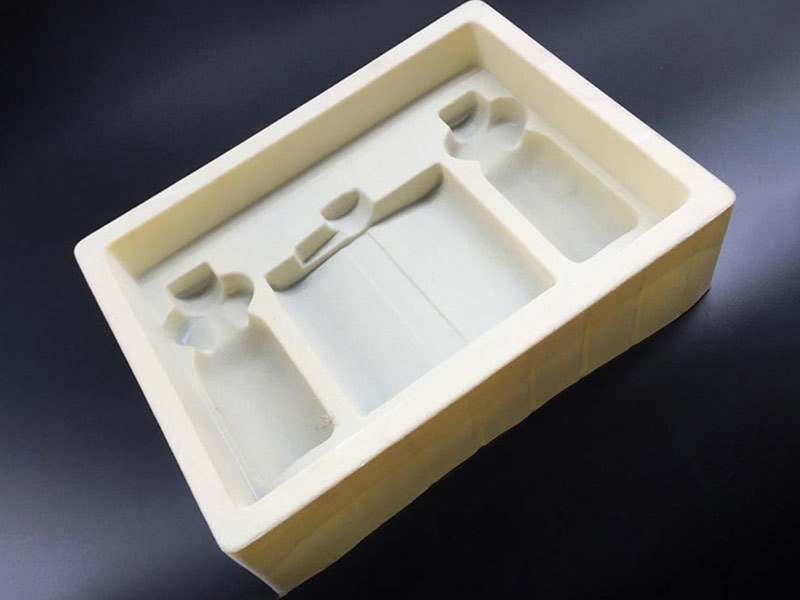

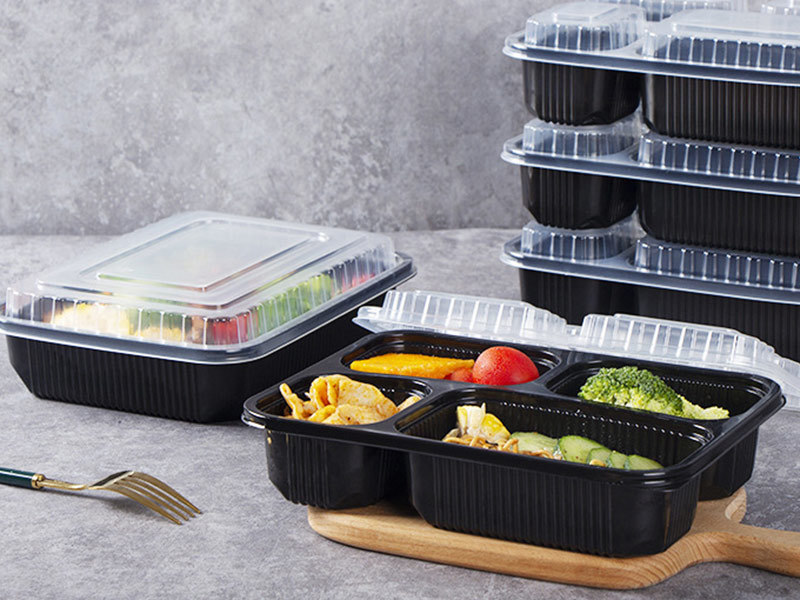

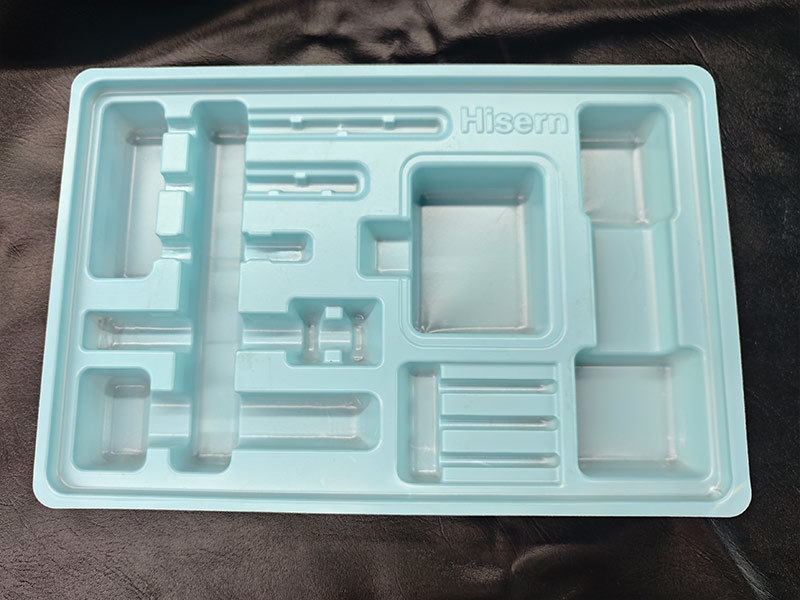

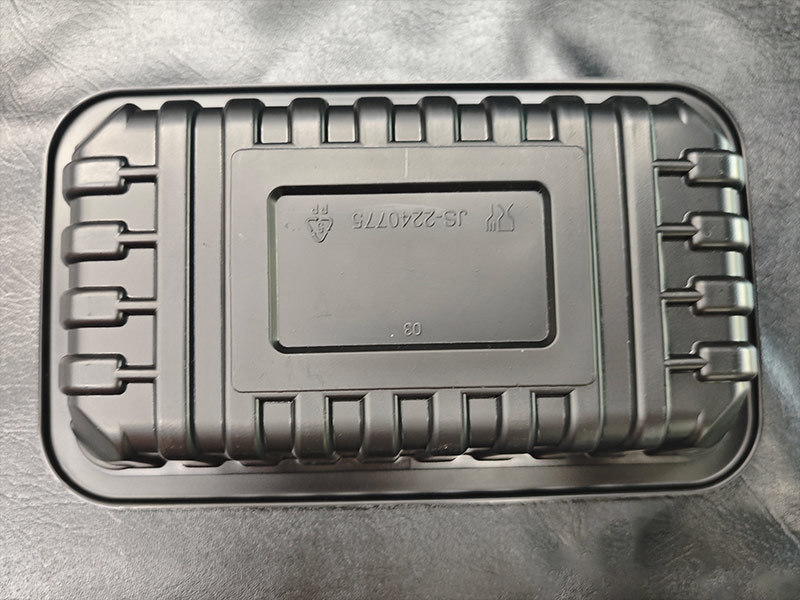

Real shot sample
Qualification
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
EU DECLARATION
CE certification
