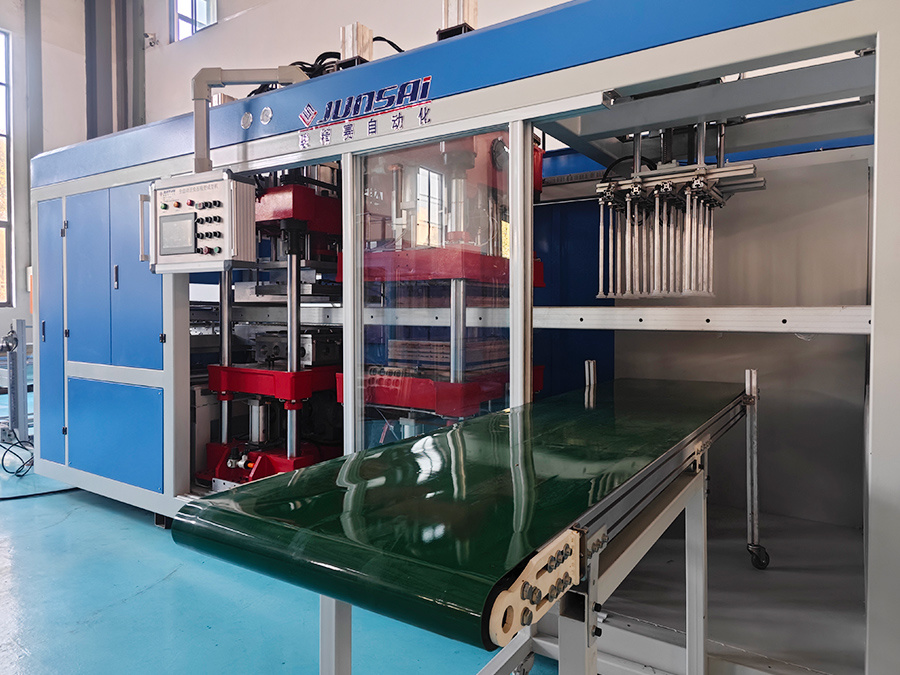

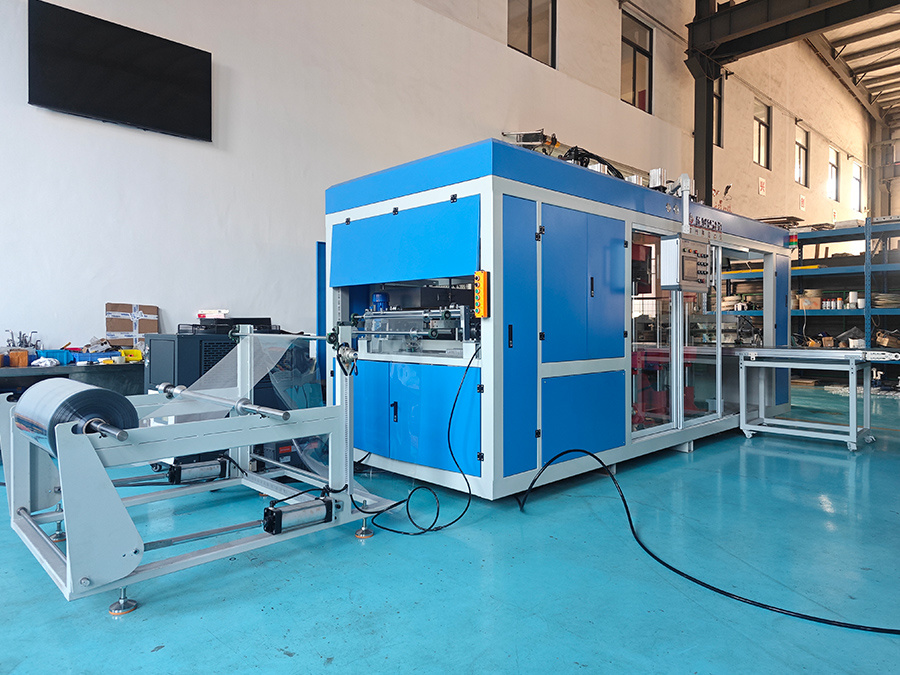

Energy Saving Positive And Negative Pressure Suction Molding Machine
Keywords：
Category：
- Detail
- Video
-
- Commodity name: Energy Saving Positive And Negative Pressure Suction Molding Machine
Contact heating can effectively save energy consumption.
Further Observation
Equipment Features
- Contact heating can effectively save energy consumption.
- The mold table can be adjusted at will, and the T-shaped structure mold table is convenient for mold replacement, shortening the mold change time and saving labor costs.
- The heating plate adopts upper and lower double-sided heating, the temperature control module is precisely controlled and easy to adjust, and the temperature of the heating source is more balanced and stable.
- The upper module components are positioned with four guide rods as a whole, and the booster cylinder is directly driven to make the upper module run faster.
Application
The equipment is suitable for forming non-PP plastic sheets such as PET and PS, and mainly produces various plastic containers and packaging products such as boxes, dishes, bowls, electronic trays, cup lids, etc.Such as fruit boxes, pastry boxes, fresh-keeping boxes, medicine trays, electronic transfer trays, toy packaging, etc.
Technical Parameters
Serial number Technical parameters 1 Maximum Molding Length 500mm ( Customizable ) 2 Maximum Molding width 700mm ( Customizable ) 3 Maximum Forming Height 100mm ( Customizable ) 4 Adaptive Material Thickness 0.15-0.8mm 5 Feeding Accuracy ±0.2mm 6 TotalPower 70kw 7 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Machine Dimension（L*W*H） 9085x1834x2160mm 9 Machine weight 8T (approximately weight)

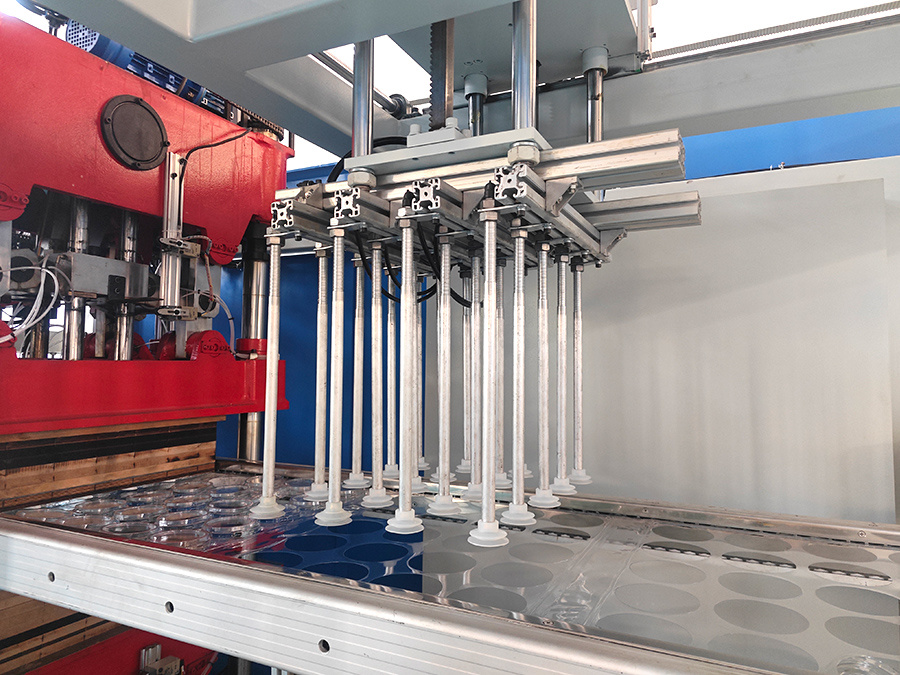

Real shot sample
Qualification
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
CHINA GREAT WALL (TIANJIN)QUALITY ASSURANCE CENTRE CO.,LTD.QUALITY MANAGEMENT SYSTEM CERTIFICATE
EU DECLARATION
CE certification
