EPS Floor Heating Module Adsorption Machine
The 3KW servo motor feeds the film, with high torque and high precision, and the speed and length can be adjusted arbitrarily.
Keywords：
Category：
- Detail
- Video
-
- Commodity name: EPS Floor Heating Module Adsorption Machine
The 3KW servo motor feeds the film, with high torque and high precision, and the speed and length can be adjusted arbitrarily.
Further Observation
Equipment Features
- The 3KW servo motor feeds the film, with high torque and high precision, and the speed and length can be adjusted arbitrarily.
- Blades are installed on both sides of the girder, and the blades are driven by a motor, which can cut the waste on both sides of the product, and are equipped with a waste winding mechanism.
- When clamping and moving the sheet, it is a mechanical alignment exchange method, driven by a servo motor to ensure the accuracy of the sheet movement.
- A variable frequency motor is installed to drive the drum device, and then the cylinder drives the drum to move up and down to level the adsorbed product to ensure that the product reaches a flat state.
Application
- EPS floor heating module adsorption machine is a fully automatic product adsorption molding blister machine designed by us for floor heating products.
- Adapt to HIPS, PS, PVC and other thermoplastic coils, equipment coils are loaded, and finished products are automatically produced, which are widely used in large-scale production tasks.
Technical Parameters
Serial number Technical parameters 1 Molding Length 1400mm 2 Molding Width 850mm 3 Forming Height 100mm 4 Adaptive Material Thickness 0.15-0.8mm 5 Production Speed 3-8 mold /min 6 Furnace Power 42kw 7 Power Capacity Three-phase four-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Total Power 60KW 8 Machine Dimension（L*W*H） 10000*4000*2400mm 9 Machine weight 4.5T (approximately weight)

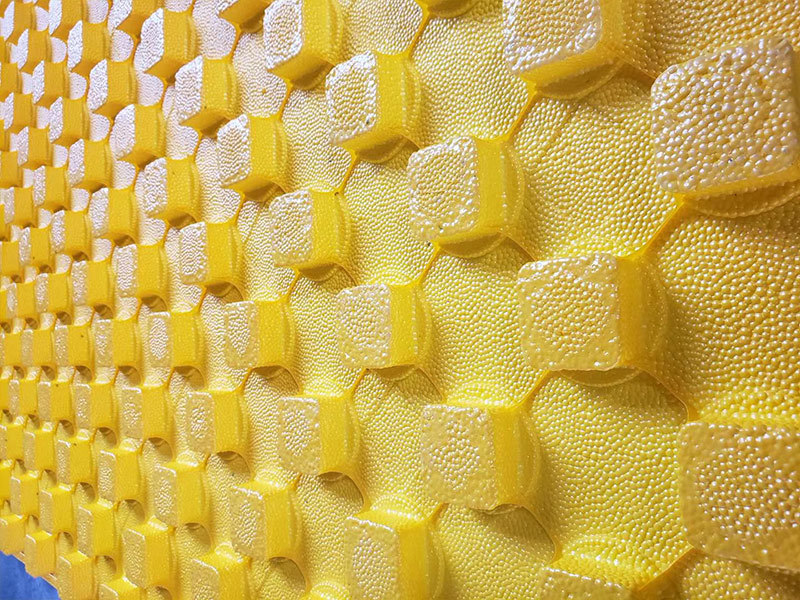

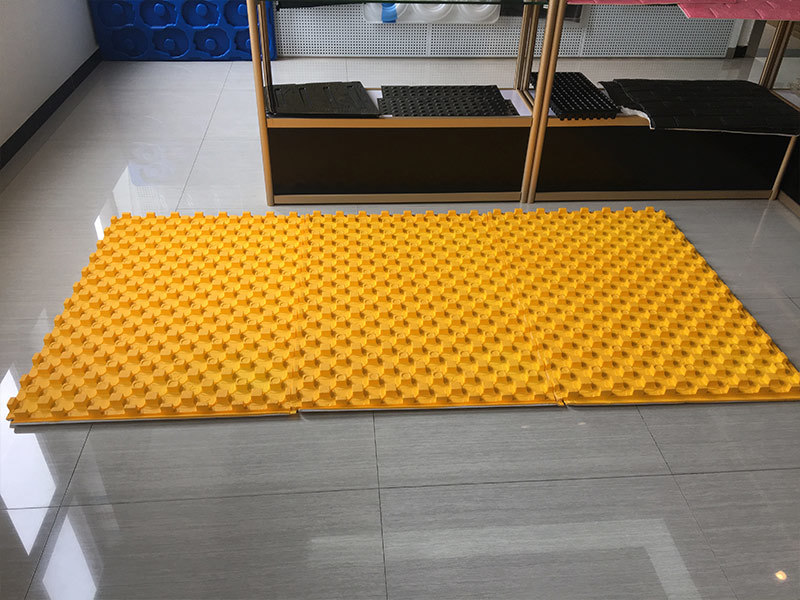

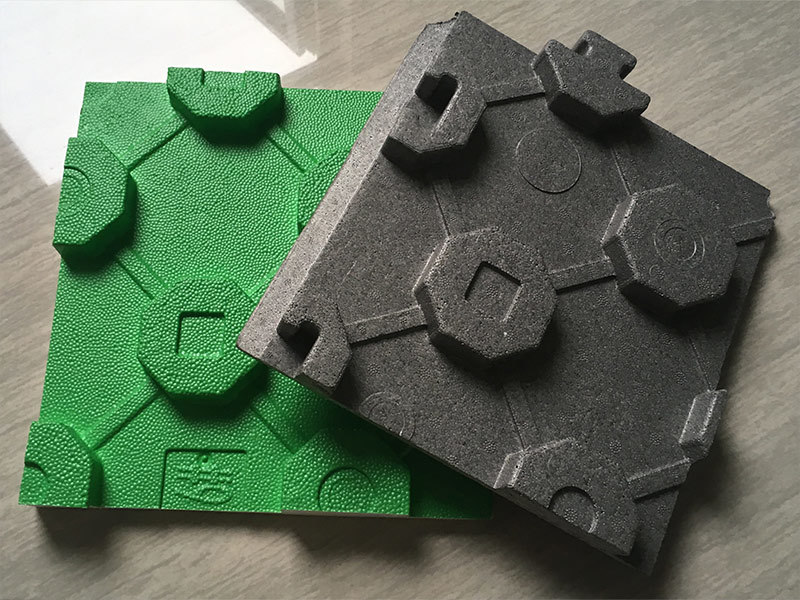

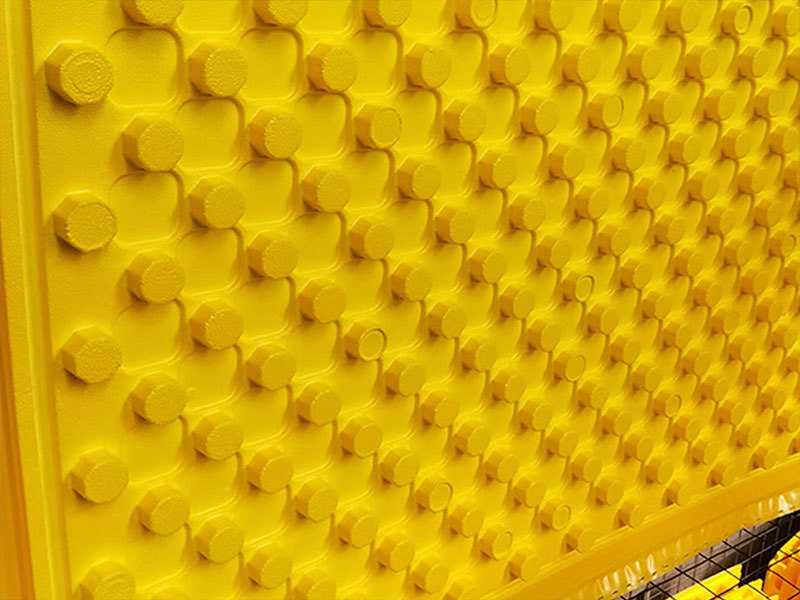

Real shot sample
