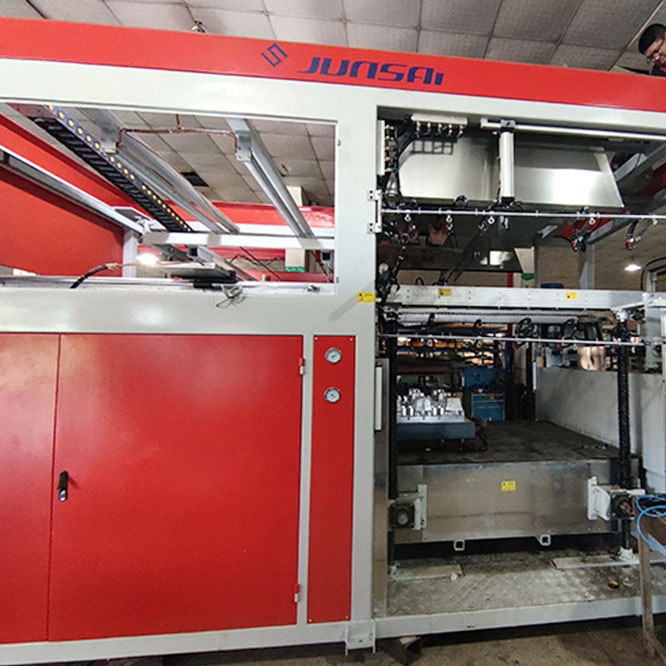

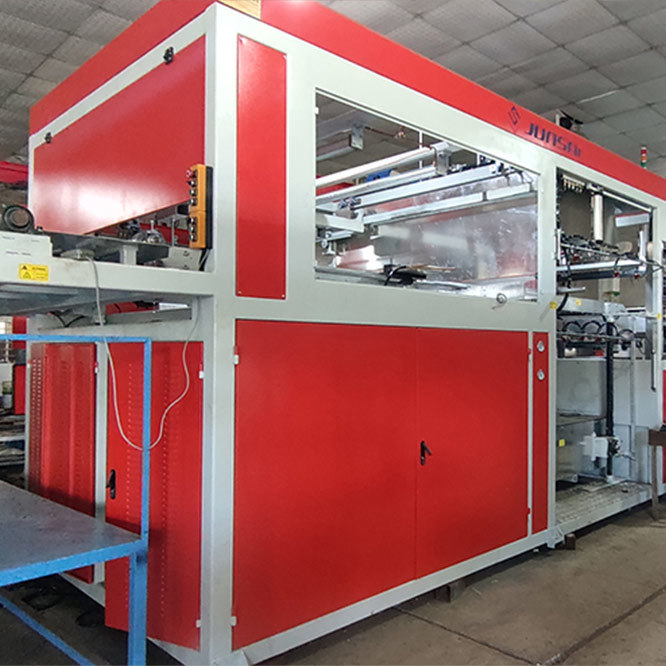

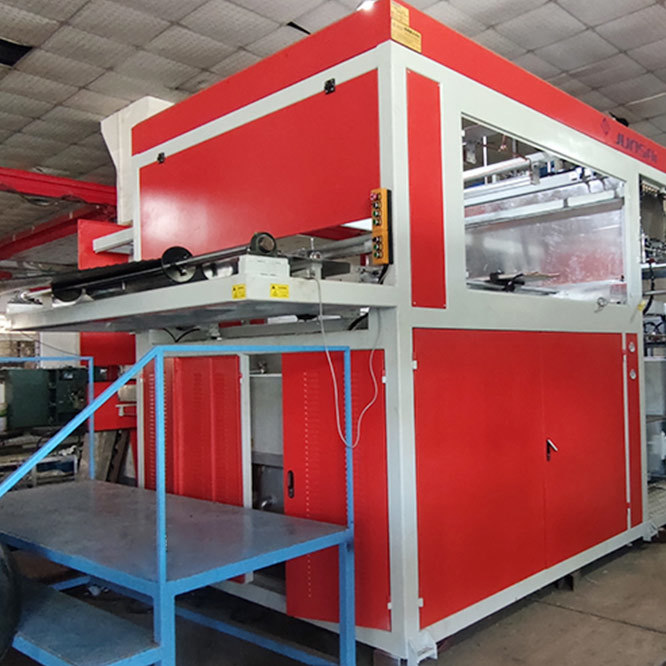

- Commodity name: Roll Thick Sheet Vacuum Forming Machine
Further Observation
Equipment Features
- Increase the frequency conversion motor to send pieces, high torque, high precision, speed and length can be adjusted arbitrarily
- The phase-shifting voltage regulator adjusts one control for the upper furnace and one control for the lower furnace to make the temperature of the hot furnace more balanced and stable.
- Equipped with a complete vacuum system, including vacuum chamber/vacuum pump/vacuum storage tank/vacuum valve/vacuum regulating valve/blowback release device, secondary vacuum and delayed vacuum, etc.
- The upper and lower mold tables are driven by servo motors to move up and down, making the mold table run fast, smoothly and forcefully.
Application
- The thick plate high-speed vacuum blister forming machine is specially designed for HDPE, PVC, PET, APET, PS, PP, ABS and other thermoplastic coils.
- The main feature is the thick sheet coil feeding, which has the functions of heating (double-sided heating, sealing and foaming), vacuum forming, cooling and setting, and product output cutting.
Serial number Technical parameters 1 Length Of Table 1800mm ( Customizable ) 2 Table width 1500mm ( Customizable ) 3 Maximum Forming Height 200mm ( Customizable ) 4 Adaptive Material Thickness 1-8mm 5 Production Speed 16 mold Left and right /h(6mm HDPE material) 6 Heating Element Heating brick 7 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Total Power 235KW 9 Machine Dimension(L*W*H) 10200*2700*2100mm

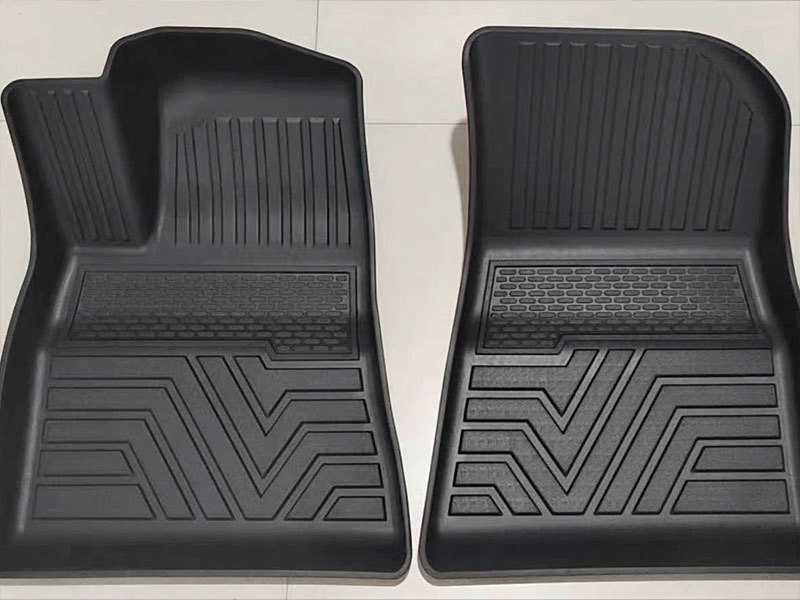

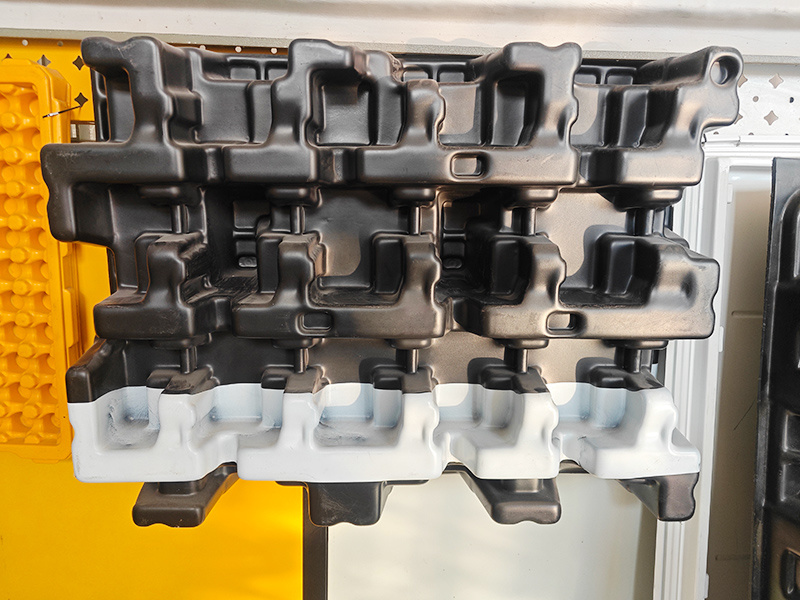

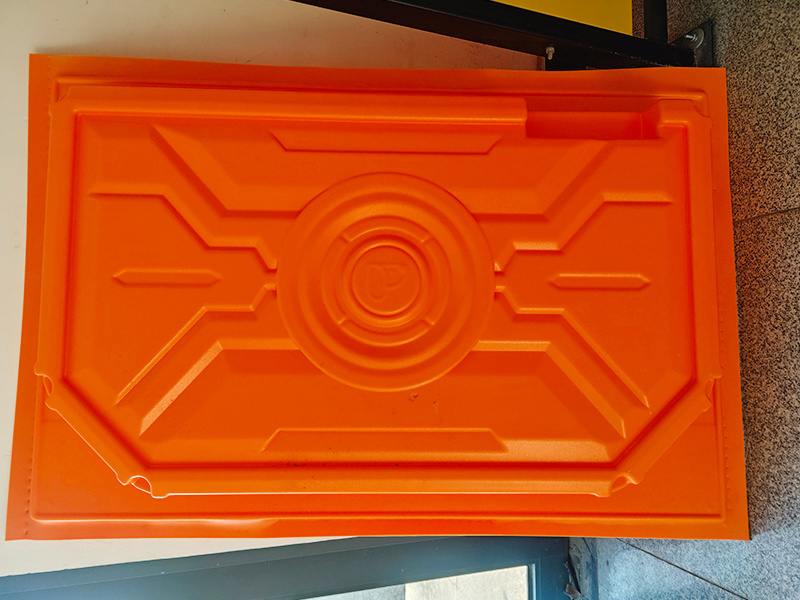

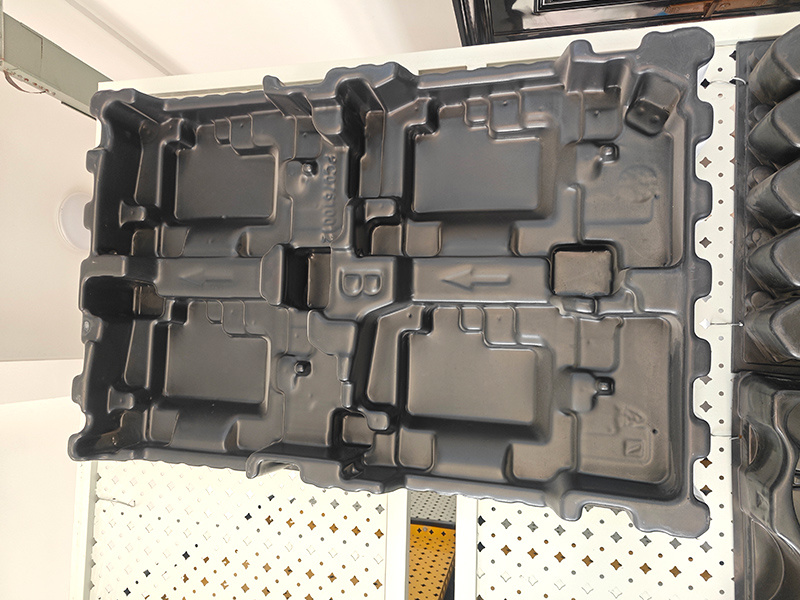

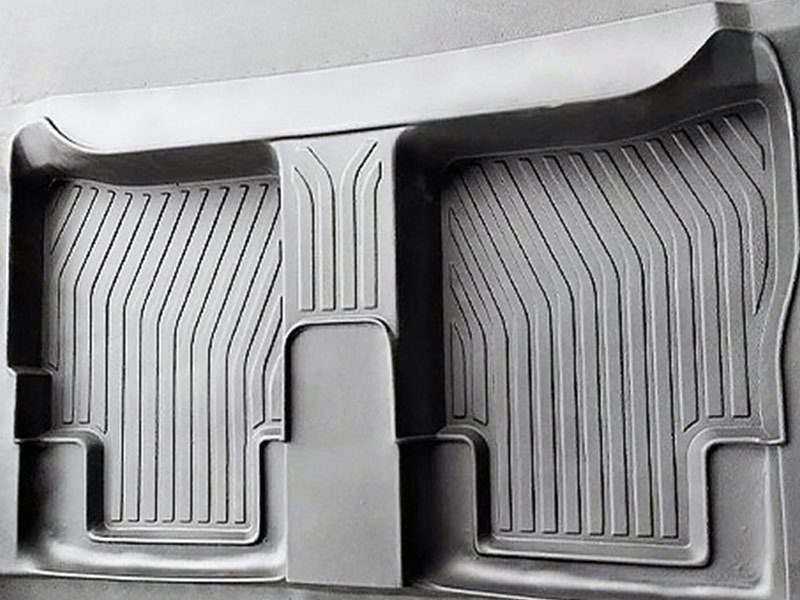

Real shot sample
