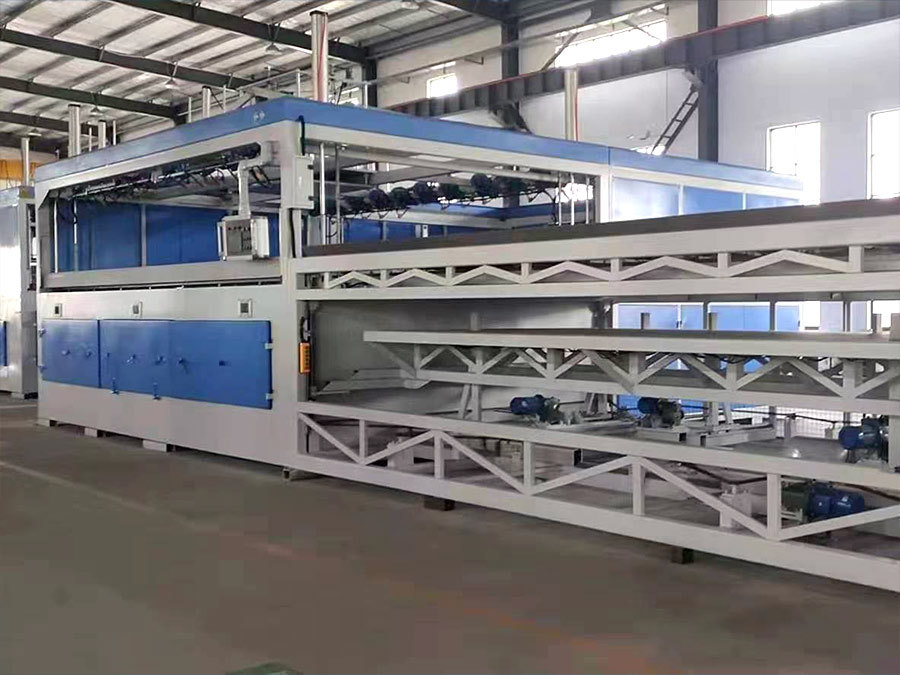

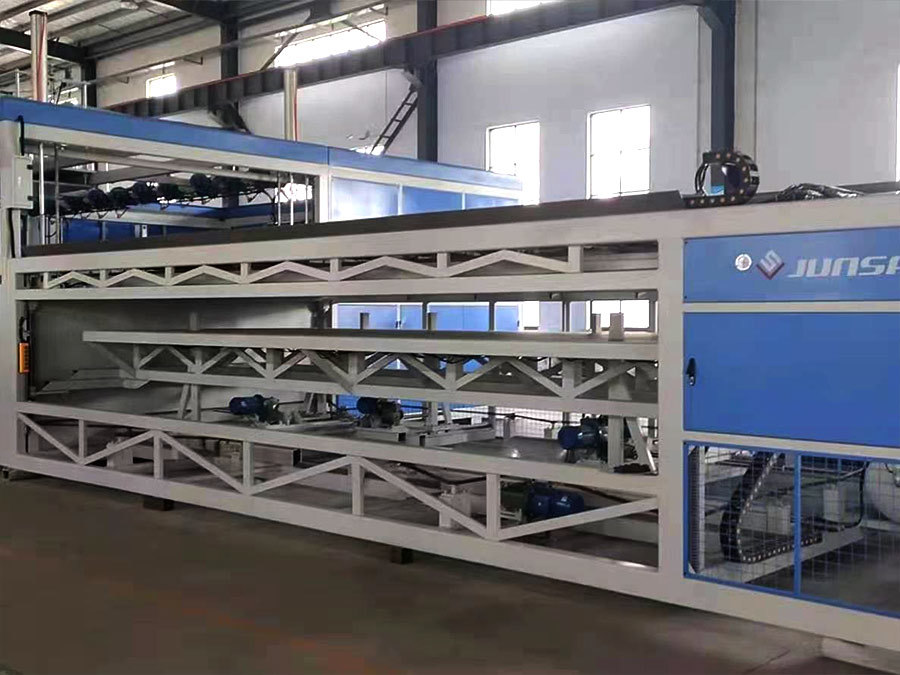

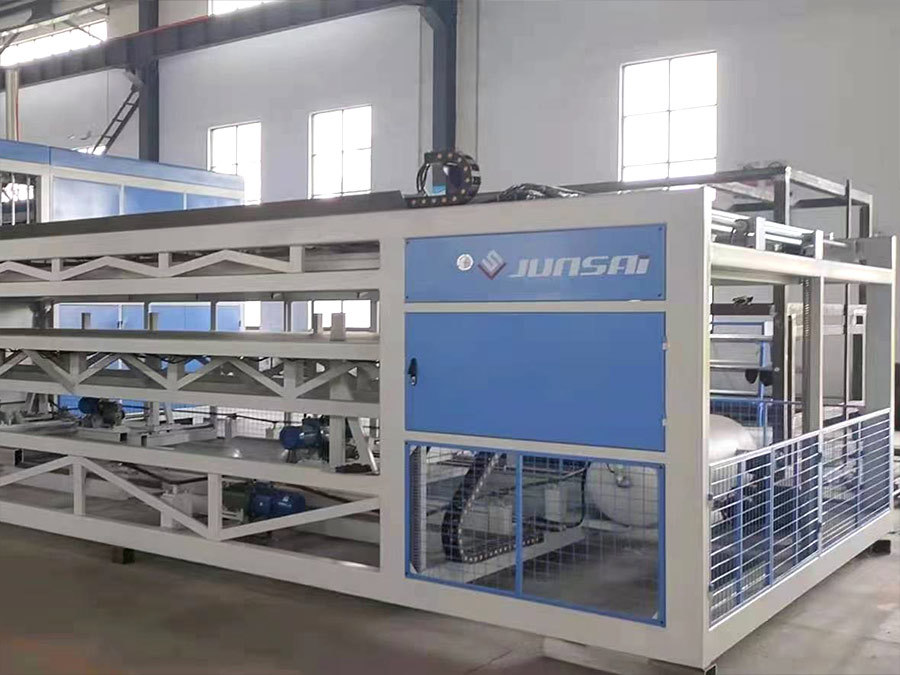

- Commodity name: Tidal Seedbed Thick Piece Vacuum Forming Machine
Further Observation
Equipment Features
- Manual discharge or automatic loading and unloading on a mechanical platform.
- The size of the blister wellhead is lengthened and widened, which is suitable for the production of large seedbeds.
- The punch state can realize the function of pre-blowing (bubble blowing), which reduces the stretching of the material by the mold.
- Sealed blowback, manual/automatic bubble blowing is optional.
Application
-

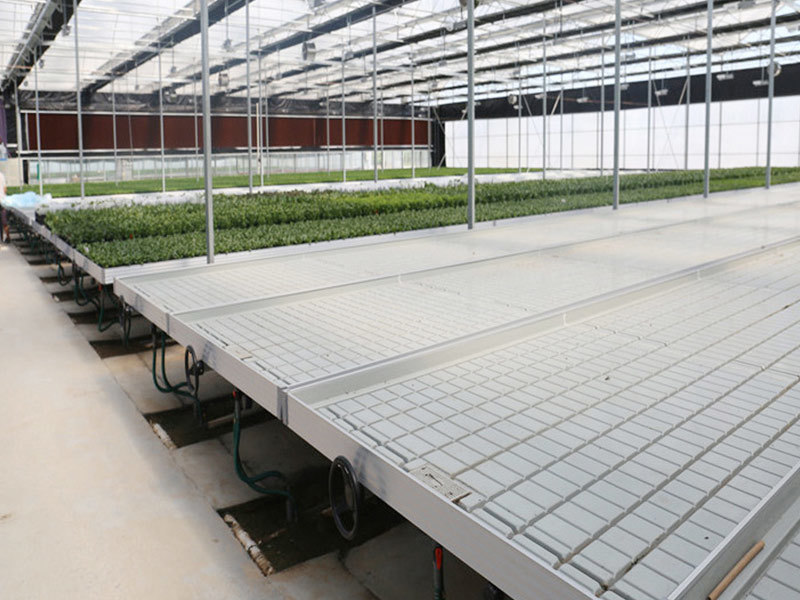

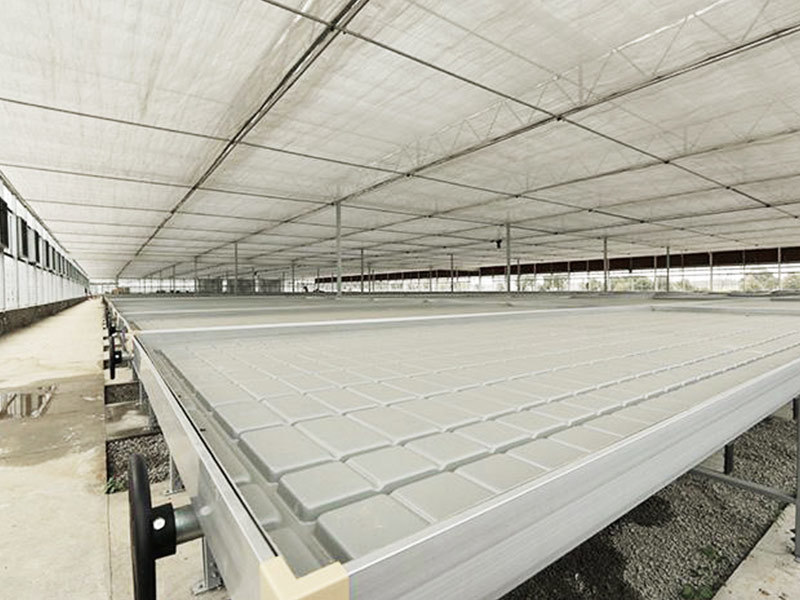

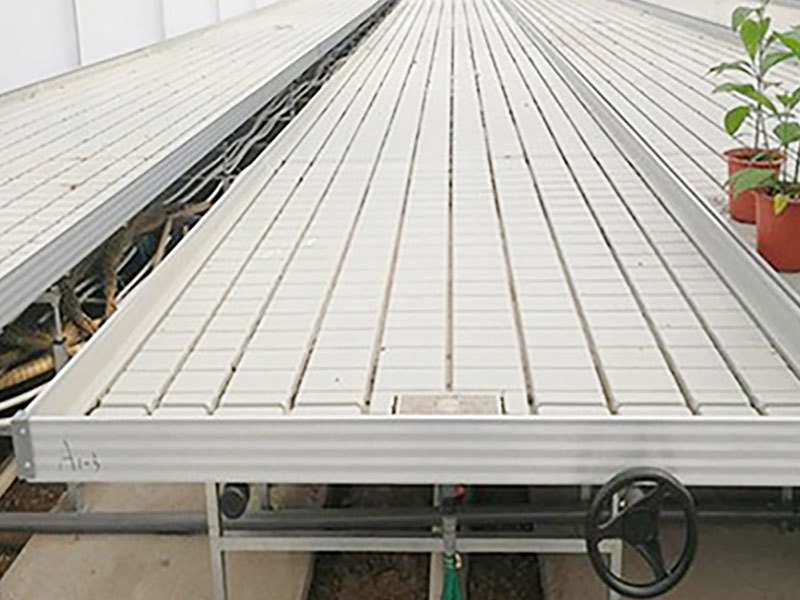

The equipment is suitable for large-size, high-precision tidal seedbed blister.
-
Common thermoplastic materials such as ABS, HDPE, PE, PC, PS, PVC, PMMA, EVA, PP, etc. can be used.
Technical Parameters
Serial number Technical parameters 1 Molding Length 6600mm ( Customizable ) 2 Molding Width 3100mm ( Customizable ) 3 Forming Height 500mm ( Customizable ) 4 Adaptive Material Thickness 1-10mm 5 Heating Element Halogen tube/carbon fiber medium wave tube 6 Furnace Power 940KW 7 Power Capacity Three-phase five-wire system, 380V, 50HZ, voltage fluctuation range ±10% 8 Machine Dimension(L*W*H) 16000*7800*4100mm 9 Machine Weight 18T(Approximately weight)

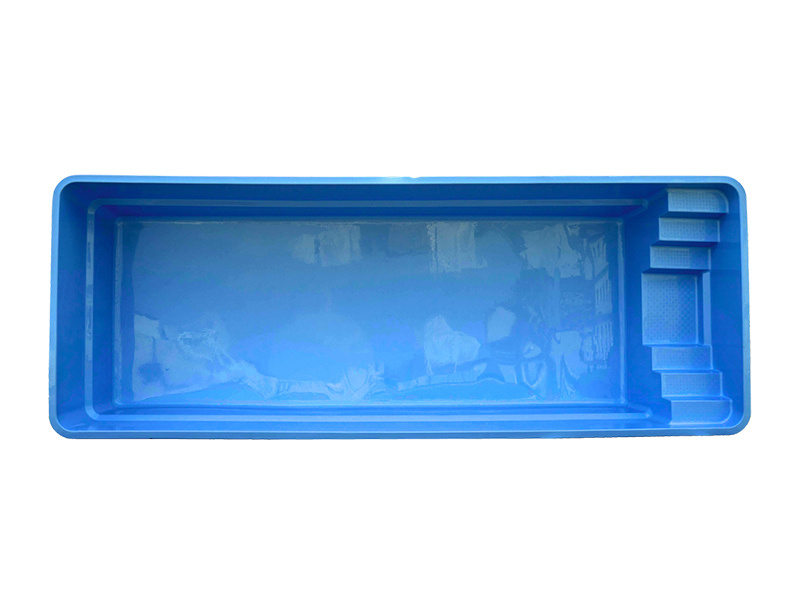

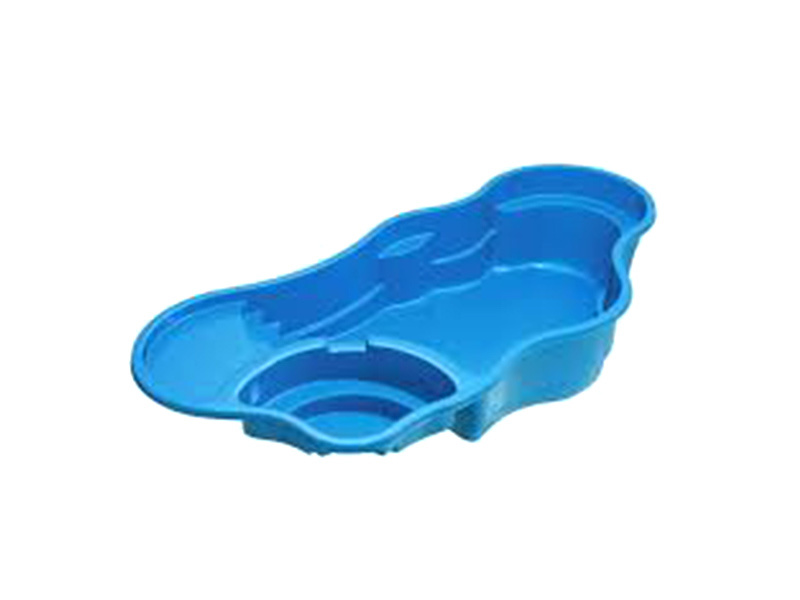

Real shot sample
